Check IB944 Horizontal Swing Valve - Bronze 25.40 mm
Check IB944 Horizontal Swing Valve - Bronze 25.40 mm
SKU:VAL-06cd2d
High-quality Check IB944 Horizontal Swing Valve in Bronze for industrial applications. Conforms to MSS SP-80 standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check IB944 Horizontal Swing Valve - Bronze 25.40 mm
$99.99
Quantity: 1
Claim Your Seller Account
Check IB944 Horizontal Swing Valve - Bronze 25.40 mm
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB944 Horizontal Swing Valve in Bronze is designed for high-pressure applications with a working pressure of 200 lb. SWP and 400 lb. WOG (Non-Shock) at temperatures up to 425°F. Featuring a Y-Pattern design and threaded ends, this valve ensures reliable performance. It conforms to MSS SP-80, Type 3, Class 200 standards, making it ideal for industrial and institutional use.
Product Specifications
Material List 0

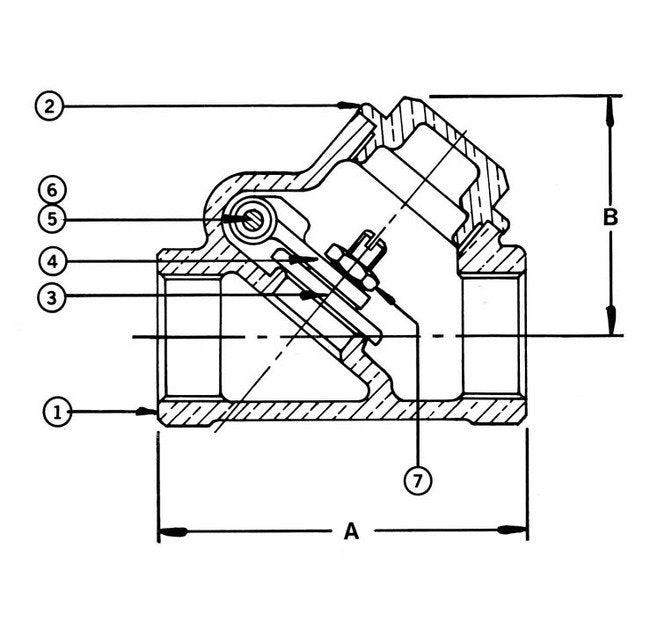

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
93.68 mm
Specifications Dimension B
63.50 mm
Specifications Material
Bronze
Specifications Size
25.40 mm
