Check IB944 Horizontal Swing Valve - Bronze, 31.75mm
Check IB944 Horizontal Swing Valve - Bronze, 31.75mm
SKU:VAL-8c8549
Premium Check IB944 Horizontal Swing Valve in Bronze with high pressure rating, Y-Pattern, and MSS SP-80 compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check IB944 Horizontal Swing Valve - Bronze, 31.75mm
$129.99
Quantity: 1
Claim Your Seller Account
Check IB944 Horizontal Swing Valve - Bronze, 31.75mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB944 Horizontal Swing Valve in Bronze is designed for high-pressure applications with a working pressure of 200 lb. SWP and 400 lb. WOG (Non-Shock). Featuring a regrinding disc for optimal performance, Y-Pattern design, and threaded ends, this valve conforms to MSS SP-80 Type 3, Class 200 standards. Crafted from high-quality materials including cast bronze and stainless steel components, this valve ensures durability and reliability in critical operations.
Product Specifications

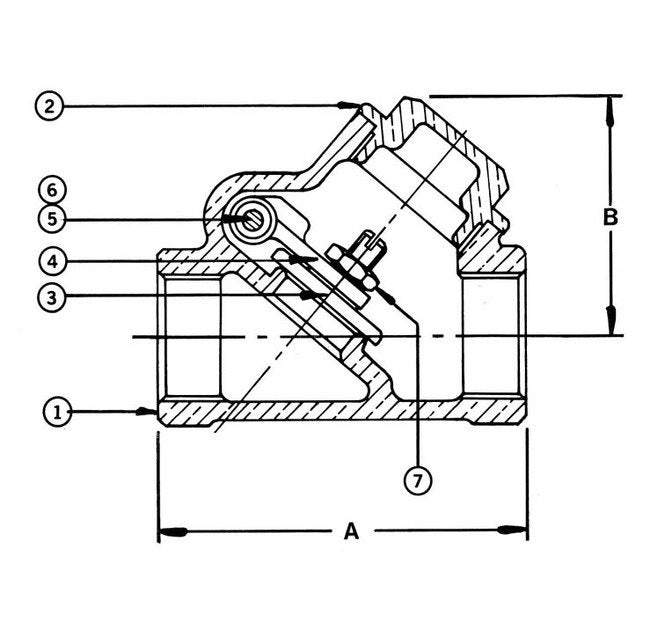

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
111.13 mm
Specifications Dimension B
76.20 mm
Specifications Material
Bronze
Specifications Size
31.75 mm
