Check IB944 Horizontal Swing Valve - Bronze, 63.50mm
Check IB944 Horizontal Swing Valve - Bronze, 63.50mm
SKU:VAL-31b40b
High-performance Check IB944 Horizontal Swing Valve - Bronze for industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Check IB944 Horizontal Swing Valve - Bronze, 63.50mm
$149.99
Quantity: 1
Claim Your Seller Account
Check IB944 Horizontal Swing Valve - Bronze, 63.50mm
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB944 Horizontal Swing Valve in Bronze is designed for high-pressure applications with a working pressure of 200 lb. SWP and temperature resistance up to 425°F. This valve features a Y-Pattern design with threaded ends, ensuring secure installation. Constructed from high-quality Cast Bronze material, this valve meets ASTM B 61 standards for durability and reliability. With a regrinding disc, St. Steel lever, and Brass components, it offers superior performance and longevity. Compliant with MSS SP-80 Type 3, Class 200, this valve is a trusted choice for industrial applications.
Product Specifications
Material List 0

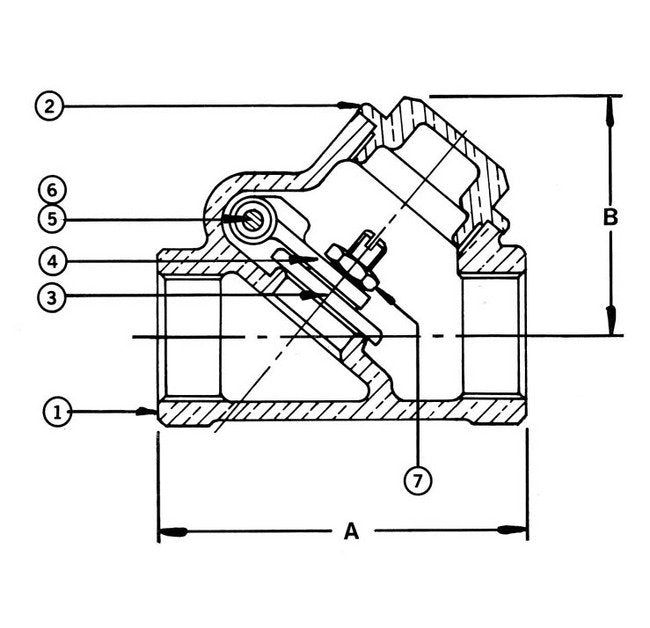

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
177.80 mm
Specifications Dimension B
120.65 mm
Specifications Material
Bronze
Specifications Size
63.50 mm
