Check IB944 Horizontal Swing Valve - Bronze, 76.20mm
Check IB944 Horizontal Swing Valve - Bronze, 76.20mm
SKU:VAL-3c696b
Check IB944 Horizontal Swing Valve - High-quality, bronze valve with 200 lb. SWP at 425°F & 400 lb. WOG (Non-Shock). Conforms to MSS SP-80 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check IB944 Horizontal Swing Valve - Bronze, 76.20mm
$129.99
Quantity: 1
Claim Your Seller Account
Check IB944 Horizontal Swing Valve - Bronze, 76.20mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB944 Horizontal Swing Valve in Bronze is a high-quality valve designed for durability and reliability. With a working pressure of 200 lb. SWP at 425°F and 400 lb. WOG (Non-Shock) at 150°F, this valve is suitable for a wide range of industrial applications. Featuring a Y-Pattern design with threaded ends, it conforms to MSS SP-80, Type 3, Class 200 standards. The valve is made of cast bronze components per ASTM B61 specifications, ensuring corrosion resistance and long-term performance.
Product Specifications
Material List 0

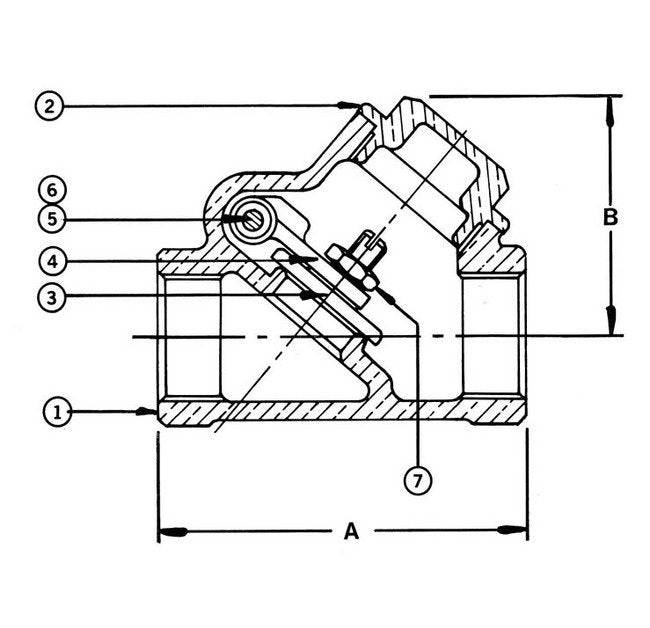

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
200.00 mm
Specifications Dimension B
127.00 mm
Specifications Material
Bronze
Specifications Size
76.20 mm
