Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends

Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends

SKU:VAL-113591

Durable Check IB944 Horizontal Swing Valve in Bronze, meets MSS SP-80 Type 3, Class 200 standards. Ideal for various applications.

Regular price $65.99
Regular price Sale price $65.99
Sale

Initiate Order

Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends

Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends

$65.99

Quantity: 1

Claim Your Seller Account

Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends

Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends

$65.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Check IB944 Horizontal Swing Valve in Bronze is a high-quality valve designed for durability and reliability. With a pressure rating of 200 lb. SWP and 400 lb. WOG (Non-Shock), this valve is suitable for a wide range of applications. It features a Y-Pattern design, Bronze Regrinding Disc, and Threaded Ends, meeting MSS SP-80 Type 3, Class 200 standards. The valve is meticulously crafted with components like Cast Bronze body, cap, disc, and lever, along with Stainless Steel pins and Brass rods for robust performance.

Product Specifications

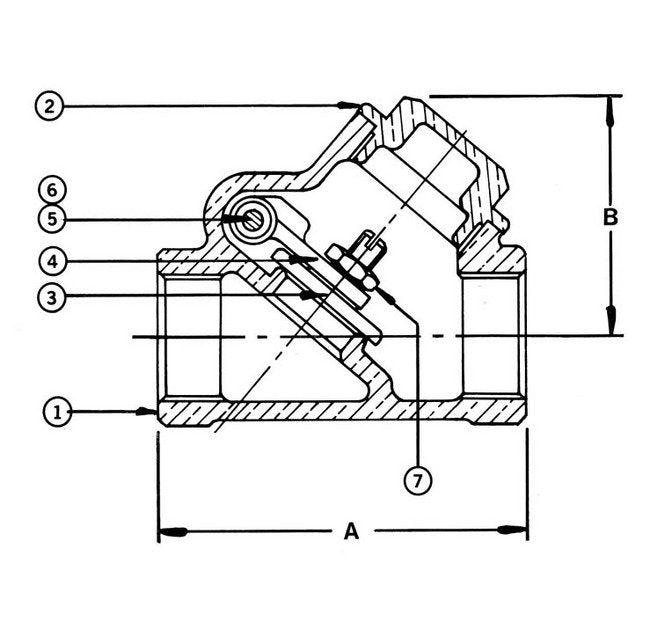

Material List 0
No.  Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
57.15 mm
Specifications Dimension B
41.28 mm
Specifications Material
Bronze
Specifications Size
6.35 mm
