Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends, MSS SP-80 Type 3 Class 200
Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends, MSS SP-80 Type 3 Class 200
SKU:VAL-0230a7
Durable Check IB944 Horizontal Swing Valve in Bronze, SWP 200 lb, WOG 400 lb, Threaded Ends, Y-Pattern, MSS SP-80 Type 3 Class 200
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends, MSS SP-80 Type 3 Class 200
$99.99
Quantity: 1
Claim Your Seller Account
Check IB944 Horizontal Swing Valve - Bronze, Threaded Ends, MSS SP-80 Type 3 Class 200
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB944 Horizontal Swing Valve in Bronze is designed for robust performance in industrial applications. With a working pressure of 200 lb. and a maximum temperature of 425°F, this valve ensures reliable operation under demanding conditions. Featuring a Y-Pattern construction and threaded ends, it conforms to MSS SP-80 Type 3 Class 200 standards. The valve components are meticulously crafted from top-quality materials, including Cast Bronze ASTM B61 for the body, cap, and disc, ensuring durability and longevity. The included lever and pins are made from high-grade materials, guaranteeing smooth operation and precise control. Trust the Check IB944 for efficient flow control and dependable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

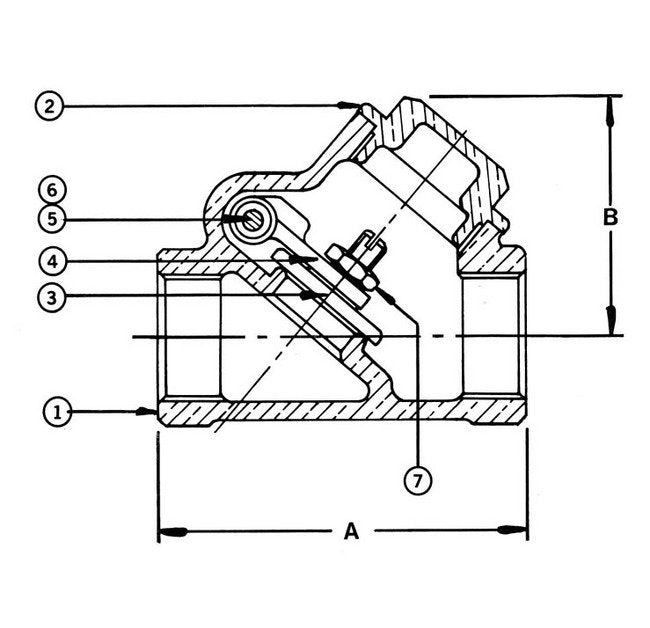

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
57.15 mm
Specifications Dimension B
41.28 mm
Specifications Material
Bronze
Specifications Size
9.53 mm
