Check IB949 Bronze Horizontal Swing Valve
Check IB949 Bronze Horizontal Swing Valve
SKU:VAL-52b7e6
High-performance Check IB949 Bronze Swing Valve for industrial applications, featuring durable bronze construction and reliable design.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check IB949 Bronze Horizontal Swing Valve
$99.99
Quantity: 1
Claim Your Seller Account
Check IB949 Bronze Horizontal Swing Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB949 Bronze Horizontal Swing Valve is designed for high-pressure applications, with a 300 lb. SWP and 600 lb. WOG rating. The Y-pattern valve with threaded ends ensures a secure seal, while the regrinding disc enhances durability. Crafted from high-quality cast bronze and stainless steel components, it meets ASTM B61 standards, ensuring reliability and longevity. This valve is ideal for industrial environments where performance and longevity are paramount.
Product Specifications

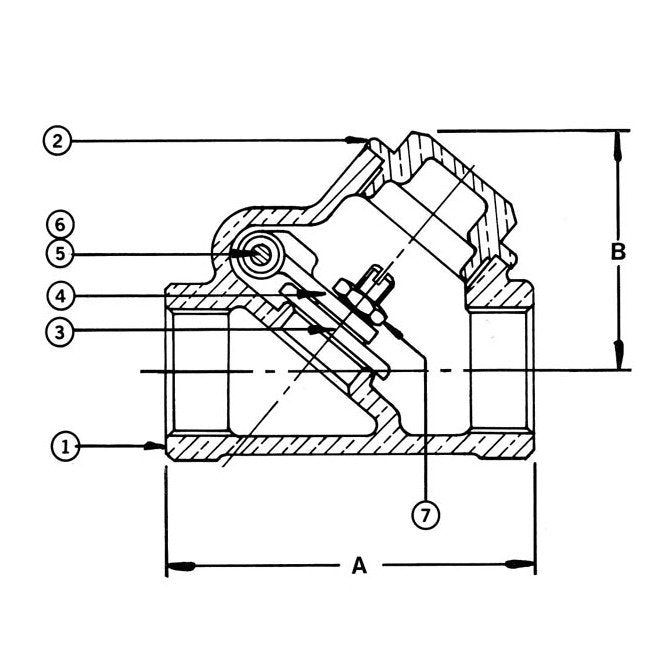

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
57.15 mm
Specifications Dimension B
41.28 mm
Specifications Material
Bronze
Specifications Size
9.53 mm
