Check IB949 Horizontal Swing Valve - Bronze, 25.40 mm
Check IB949 Horizontal Swing Valve - Bronze, 25.40 mm
SKU:VAL-43e4fd
Reliable Check IB949 Horizontal Swing Valve in Bronze, 25.40 mm, conforms to MSS SP-80 Type 3, Class 300 standards for high-pressure applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check IB949 Horizontal Swing Valve - Bronze, 25.40 mm
$129.99
Quantity: 1
Claim Your Seller Account
Check IB949 Horizontal Swing Valve - Bronze, 25.40 mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB949 Horizontal Swing Valve in Bronze is a high-quality valve suitable for a variety of industrial applications. With a 300 lb. SWP and 425°F temperature rating, this valve offers reliable performance under high-pressure conditions. Featuring Y-Pattern design, threaded ends, and a regrinding disc, it conforms to MSS SP-80 Type 3, Class 300 standards. Made from durable materials including Cast Bronze and St. Steel components, this valve ensures longevity and efficient operation.
Product Specifications

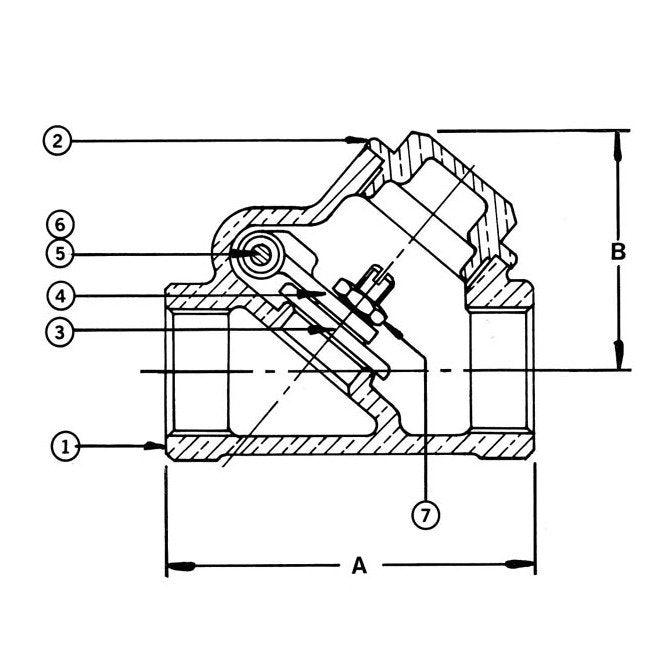

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
93.68 mm
Specifications Dimension B
63.50 mm
Specifications Material
Bronze
Specifications Size
25.40 mm
