Check IB949 Horizontal Swing Valve - Bronze, 31.75mm
Check IB949 Horizontal Swing Valve - Bronze, 31.75mm
SKU:VAL-36df1b
Durable Check IB949 Horizontal Swing Valve in Bronze, meets MSS SP-80 Class 300 standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check IB949 Horizontal Swing Valve - Bronze, 31.75mm
$99.99
Quantity: 1
Claim Your Seller Account
Check IB949 Horizontal Swing Valve - Bronze, 31.75mm
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB949 Horizontal Swing Valve in Bronze is a durable and reliable valve designed for a maximum working pressure of 300 lbs at 425°F, with a 600 lbs WOG for non-shock applications at 150°F. Featuring a Y-Pattern design, threaded ends, and a reground disc, this valve conforms to MSS SP-80 Type 3, Class 300 standards. Its components, including body, cap, disc, lever, pin, plug rod, and disc nut, are made from high-quality materials meeting ASTM and commercial standards.
Product Specifications
Material List 0

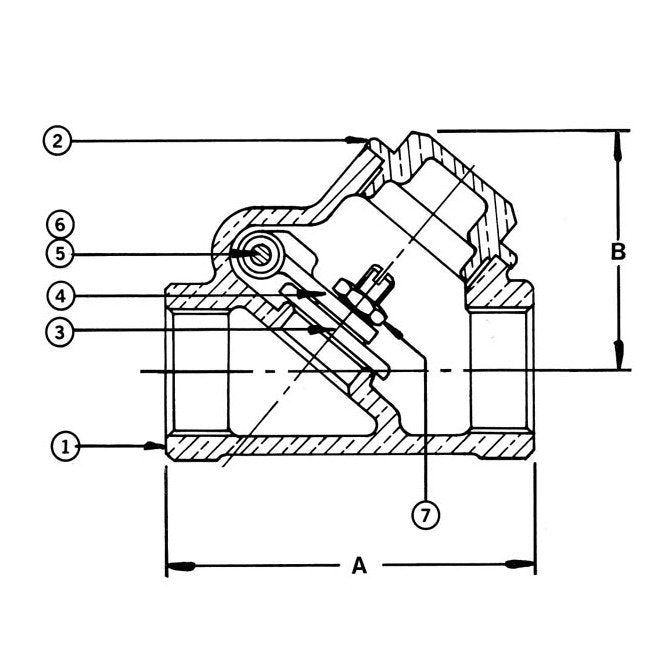

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
111.13 mm
Specifications Dimension B
76.20 mm
Specifications Material
Bronze
Specifications Size
31.75 mm
