Check IB949 Horizontal Swing Valve - Bronze 6.35mm, Class 300
Check IB949 Horizontal Swing Valve - Bronze 6.35mm, Class 300
SKU:VAL-34a0e6
Durable bronze swing valve for precise fluid control, meets Class 300 standards
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Check IB949 Horizontal Swing Valve - Bronze 6.35mm, Class 300
$89.99
Quantity: 1
Claim Your Seller Account
Check IB949 Horizontal Swing Valve - Bronze 6.35mm, Class 300
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB949 Horizontal Swing Valve in bronze is a reliable solution for fluid control applications. With a working pressure of 300 lb. and temperature resistance up to 425°F, this valve ensures durability and performance. Featuring Y-Pattern design and threaded ends, it conforms to MSS SP-80 Type 3, Class 300 standards. Crafted from high-quality materials including cast bronze and stainless steel components, this valve guarantees long-lasting functionality and minimal maintenance requirements, making it ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

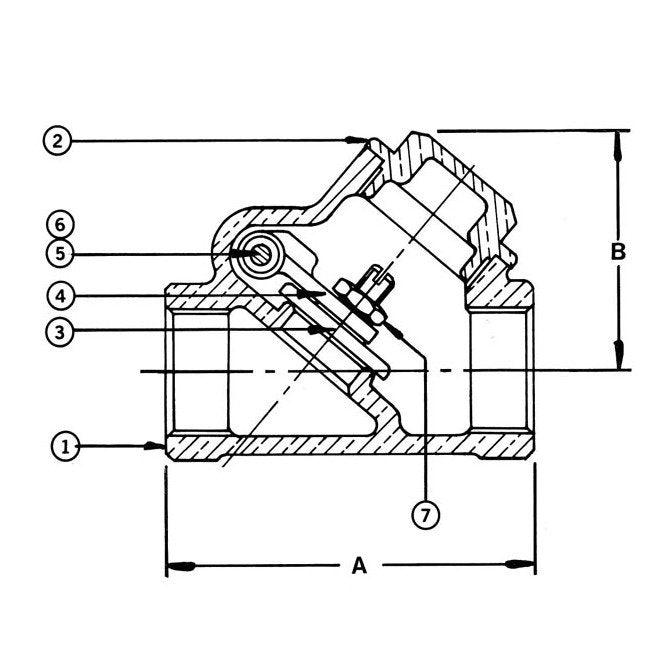

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
57.15 mm
Specifications Dimension B
41.28 mm
Specifications Material
Bronze
Specifications Size
6.35 mm
