Check Valve IB949 Horizontal Swing - Bronze, 76.20mm
Check Valve IB949 Horizontal Swing - Bronze, 76.20mm
SKU:VAL-a794cc
High-performance Check Valve IB949 Horizontal Swing in Bronze for industrial fluid control applications. Conforms to MSS SP-80 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check Valve IB949 Horizontal Swing - Bronze, 76.20mm
$129.99
Quantity: 1
Claim Your Seller Account
Check Valve IB949 Horizontal Swing - Bronze, 76.20mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check Valve IB949 Horizontal Swing in Bronze is a premium valve designed for high-pressure applications, offering a 300 lb. SWP and 600 lb. WOG (Non-Shock) rating, ideal for industrial settings. Featuring a regrinding disc, Y-Pattern design, and threaded ends, this valve conforms to MSS SP-80 Type 3, Class 300 standards. Made of high-quality cast bronze and stainless steel components, it ensures durability and reliable performance. With dimensions of 200.00mm (A) x 127.00mm (B), this valve is a robust and efficient choice for your fluid control needs.
Product Specifications

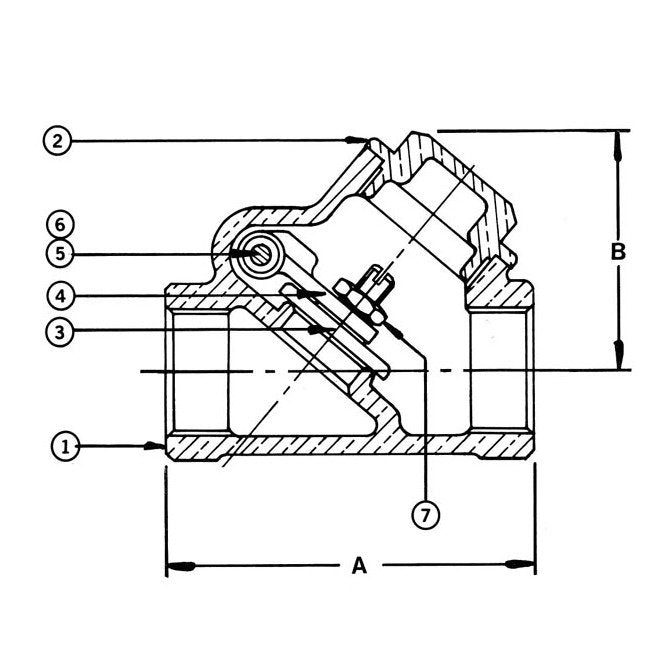

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
200.00 mm
Specifications Dimension B
127.00 mm
Specifications Material
Bronze
Specifications Size
76.20 mm
