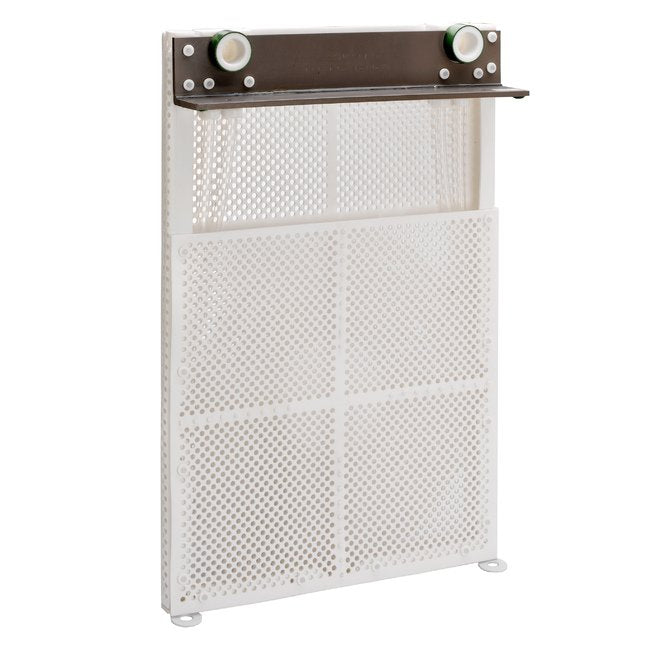

ChemGuard Fluoropolymer Heat Exchanger
ChemGuard Fluoropolymer Heat Exchanger
SKU:HEA-4301f6
Robust ChemGuard Fluoropolymer Heat Exchanger for efficient heating or cooling, featuring non-conductive design and leak-free operation.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
ChemGuard Fluoropolymer Heat Exchanger
$1,199.99
Quantity: 1
Claim Your Seller Account
ChemGuard Fluoropolymer Heat Exchanger
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ChemGuard Fluoropolymer Heat Exchanger from Process Technology is a robust solution designed to eliminate stray currents in tanks, ensuring excellent chemical compatibility and rugged performance for heating or cooling applications. Constructed with FEP, PFA, or PTFE fluoropolymer materials, this heat exchanger features a heavy-duty CPVC mounting bracket for enhanced durability. With heavy wall tubing for improved circulation and reduced pressure drop, it offers outstanding performance. The integral inlet/outlet connections minimize leaks, while its non-conductive nature enhances safety by eliminating stray currents in the tank. Available in various sizes and with options like anti-floatation brackets and custom configurations, the ChemGuard ensures leak-free operation and efficient heat transfer.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1-1/2" FNPT
Specifications Dimension A
23-1/2 " | 597 mm
Specifications Dimension B
23-1/2 " | 597 mm
Specifications Dimension C
5-3/4 " | 146 mm
Specifications Dimension D
29-1/2 " | 749 mm
Specifications Exchange Area
46.50 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
42.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
42.0 lbs | 19.1 kg
