ChemGuard PPS Sheet
ChemGuard PPS Sheet
SKU:SHA-fbfd79
ChemGuard PPS Sheets: Unmatched chemical resistance, precise machining, superior electrical properties. ASTM D 6358 & UL 94 V0 compliant.
Regular price
$79.95
Regular price
Sale price
$79.95
Unit price
per
Initiate Order
ChemGuard PPS Sheet
$79.95
Quantity: 1
Claim Your Seller Account
ChemGuard PPS Sheet
$79.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

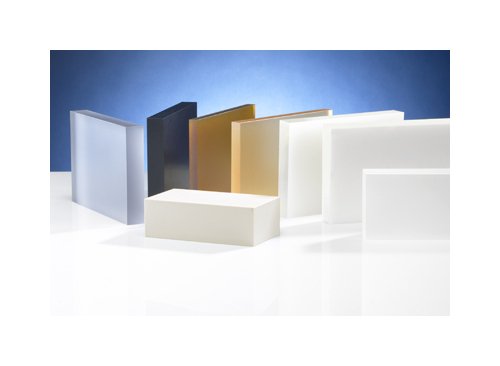

ChemGuard PPS Sheets are engineered to provide unparalleled chemical resistance, minimal moisture absorption, and exceptional dimensional stability, making them ideal for precision machining applications in harsh environments. With superior electrical properties, flame retardance, and high tensile strength, these sheets offer reliability and longevity. Compliant with ASTM D 6358 and UL 94 V0 standards, ChemGuard PPS Sheets are the top choice for pump housings, chromatography components, and laboratory equipment in both commercial and government sectors.
Product Specifications
Advantages 0
High Strength.Excellent chemical & hydrolysis resistance.Very good dimensional stability.Excellent wear & frictional behavior.Inherent low flammability. Excellent alternative to PEEK at lower temperatures.Good electrical insulating & dielectric properties.Essentially zero moisture absorption.
Applications 0
Pump housings.High pressure liquid Chromatography components.Chip nests.Retaining rings.Wafer Carriers.Laboratory & Analytical Equipment.
Specifications Astm Shape Spec
ASTM D 6358
Specifications Availability
3-4 weeks
Specifications Coefficient Of Friction Dynamic
.40
Specifications Color
Off-white
Specifications Dielectric Strength
540 V/mil
Specifications Flammability Rating Ul 94
V0 (.125")
Specifications Flexural Modulus
575000 psi
Specifications Flexural Strength
21000 psi
Specifications Hardness Durometer Shore D
85
Specifications Heat Deflection Temperature 264 Psi
250 ºF
Specifications Impact Strength Notched
.60 ft·lb/in
Specifications Material
PPS
Specifications Maximum Operating Temperature
425 ºF
Specifications Minimum Order
1
Specifications Optional Sheet Size
12"x48"⢠24"x48"
Specifications Sheet Size
12 x 12 in
Specifications Specific Gravity
1.35
Specifications Tensile Strength
13500 psi
Specifications Thickness
3.500 in
Specifications Tolerance
+only in
Specifications Weight
1.76 lb/ft²
