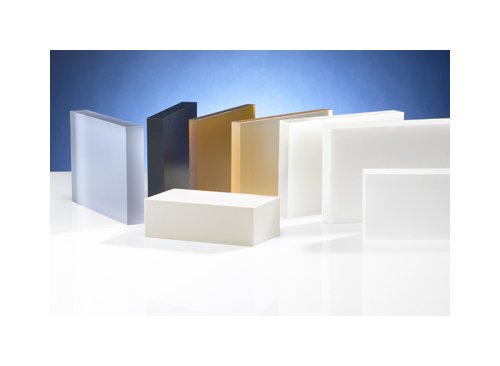

ChemGuard - PPS Sheet
ChemGuard - PPS Sheet
SKU:SHA-3841a9
Discover ChemGuard PPS Sheets for unparalleled chemical resistance and thermal stability. Perfect for precise machined components with superior electrical properties.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
ChemGuard - PPS Sheet
$59.99
Quantity: 1
Claim Your Seller Account
ChemGuard - PPS Sheet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
ChemGuard PPS Sheets are renowned for their exceptional chemical resistance, low moisture absorption, and high thermal stability. These sheets are precision-machined components that excel in harsh environments, offering superior electrical characteristics and flame-retardant properties. With a high tensile strength of 13500 psi and a maximum operating temperature of 425°F, ChemGuard PPS Sheets are the ideal choice for pump housings, chromatography components, and laboratory equipment, meeting ASTM D 6358 specifications.
Product Specifications
Advantages 0
High Strength.Excellent chemical & hydrolysis resistance.Very good dimensional stability.Excellent wear & frictional behavior.Inherent low flammability. Excellent alternative to PEEK at lower temperatures.Good electrical insulating & dielectric properties.Essentially zero moisture absorption.
Applications 0
Pump housings.High pressure liquid Chromatography components.Chip nests.Retaining rings.Wafer Carriers.Laboratory & Analytical Equipment.
Specifications Astm Shape Spec
ASTM D 6358
Specifications Availability
3-5 days
Specifications Coefficient Of Friction Dynamic
.40
Specifications Color
Off-white
Specifications Dielectric Strength
540 V/mil
Specifications Flammability Rating Ul 94
V0 (.125")
Specifications Flexural Modulus
575000 psi
Specifications Flexural Strength
21000 psi
Specifications Hardness Durometer Shore D
85
Specifications Heat Deflection Temperature 264 Psi
250 ºF
Specifications Impact Strength Notched
.60 ft·lb/in
Specifications Material
PPS
Specifications Maximum Operating Temperature
425 ºF
Specifications Minimum Order
1
Specifications Optional Sheet Size
12"x48"⢠24"x48"
Specifications Sheet Size
12 x 12 in
Specifications Specific Gravity
1.35
Specifications Tensile Strength
13500 psi
Specifications Thickness
1.750 in
Specifications Tolerance
+only in
Specifications Weight
1.76 lb/ft²
