ChemResist PPS Sheet
ChemResist PPS Sheet
SKU:SHA-3ed040
Discover unmatched chemical resistance with our ChemResist PPS Sheet. High strength, low flammability, and ASTM D 6358 compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
ChemResist PPS Sheet
$89.99
Quantity: 1
Claim Your Seller Account
ChemResist PPS Sheet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

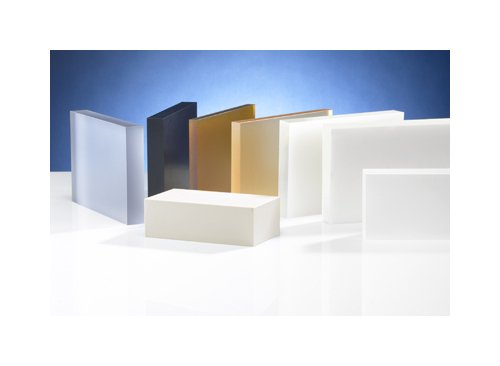

Our ChemResist PPS Sheet is a high-performance engineering plastic known for its exceptional chemical resistance, high strength, and superior dimensional stability. With a maximum operating temperature of 425°F, inertness to various chemicals, and excellent electrical properties, this PPS sheet is ideal for pump housings, chromatography components, chip nests, and more. Its low flammability, minimal moisture absorption, and compliance with ASTM D 6358 make it a reliable choice for critical applications.
Product Specifications
Advantages 0
High Strength.Excellent chemical & hydrolysis resistance.Very good dimensional stability.Excellent wear & frictional behavior.Inherent low flammability. Excellent alternative to PEEK at lower temperatures.Good electrical insulating & dielectric properties.Essentially zero moisture absorption.
Applications 0
Pump housings.High pressure liquid Chromatography components.Chip nests.Retaining rings.Wafer Carriers.Laboratory & Analytical Equipment.
Specifications Astm Shape Spec
ASTM D 6358
Specifications Availability
3-4 weeks
Specifications Coefficient Of Friction Dynamic
.40
Specifications Color
Off-white
Specifications Dielectric Strength
540 V/mil
Specifications Flammability Rating Ul 94
V0 (.125")
Specifications Flexural Modulus
575000 psi
Specifications Flexural Strength
21000 psi
Specifications Hardness Durometer Shore D
85
Specifications Heat Deflection Temperature 264 Psi
250 ºF
Specifications Impact Strength Notched
.60 ft·lb/in
Specifications Material
PPS
Specifications Maximum Operating Temperature
425 ºF
Specifications Minimum Order
1
Specifications Optional Sheet Size
12"x48"⢠24"x48"
Specifications Sheet Size
12 x 12 in
Specifications Specific Gravity
1.35
Specifications Tensile Strength
13500 psi
Specifications Thickness
4.00 in
Specifications Tolerance
+only in
Specifications Weight
1.76 lb/ft²
