CHG Metallized Film Capacitor - 0.66 µF, 600V

Name: CHG Metallized Film Capacitor - 0.66 µF, 600V
Brand: High Energy Corp.
SKU: MET-43033b
Price: 49.99 USD
Availability: OutOfStock

SKU:MET-43033b

High-performance Epoxied CHG Metallized Film Capacitor for reliable and efficient electrical applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

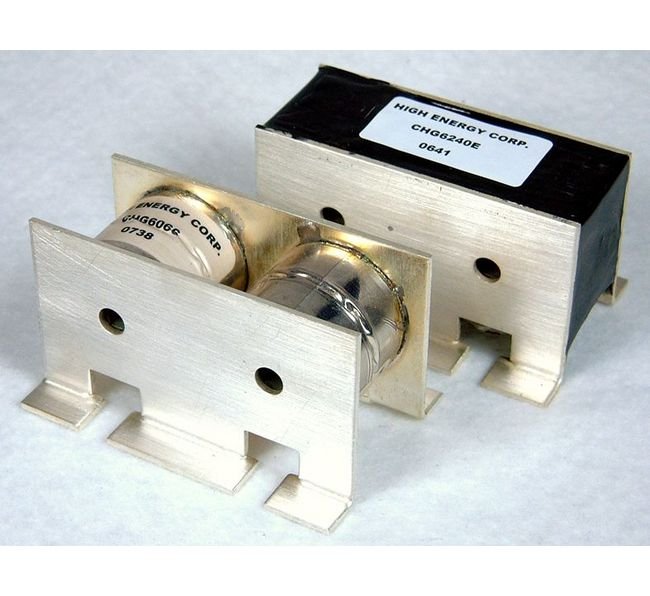

The Epoxied CHG Series Metallized Film Capacitor is a high-performance solution designed for demanding applications. With a capacitance range of 0.11 to 2.4 µF and a working voltage of up to 600 VRMS, this capacitor ensures reliable operation in various electrical systems. It boasts a compact design with dimensions of 3 x 1 11/16 x 1 3/4 inches and is conduction-cooled by bus bars for efficient heat dissipation. The CHG capacitor is rated for up to 625 ARMS max current and can be stacked in series or parallel, making it versatile and easy to integrate into different setups. Trust in the CHG Series for exceptional performance and durability in your projects.

Product Specifications

Specifications Cap

0.66 µF

Specifications Capacitance Range

0.11 to 2.4 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

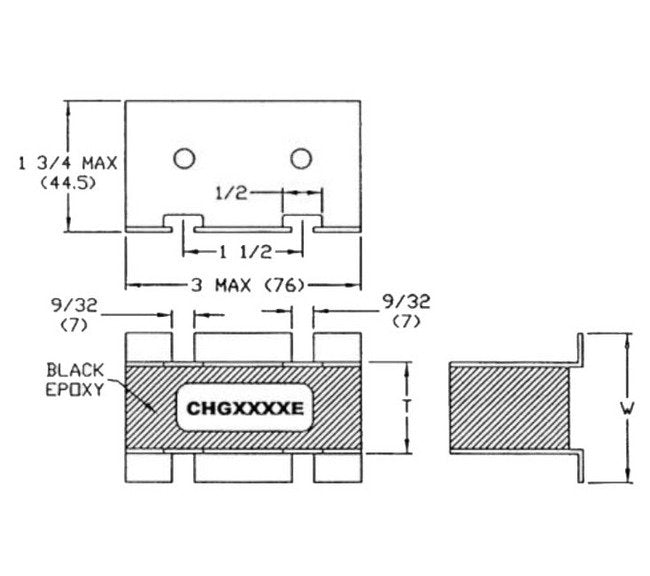

Specifications Dimensions

3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm

Specifications Dimension T

7/8 in | 22.2 mm

Specifications Dimension W

1 11/16 in | 42.8 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

290 kHz

Specifications Fl

218 kHz

Specifications Fmax

500 kHz

Specifications Imax Rms

625 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

325 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

600 V

Specifications Weight

0.14 kg | 0.30 lb

CHG Metallized Film Capacitor - 0.66 µF, 600V
