CHG Series Epoxy-Sealed Metallized Film Capacitor

Name: CHG Series Epoxy-Sealed Metallized Film Capacitor
Brand: High Energy Corp.
SKU: MET-b5b9ac
Price: 29.99 USD
Availability: OutOfStock

SKU:MET-b5b9ac

High-performance Epoxied CHG Series Metallized Film Capacitor for reliable power handling in demanding applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

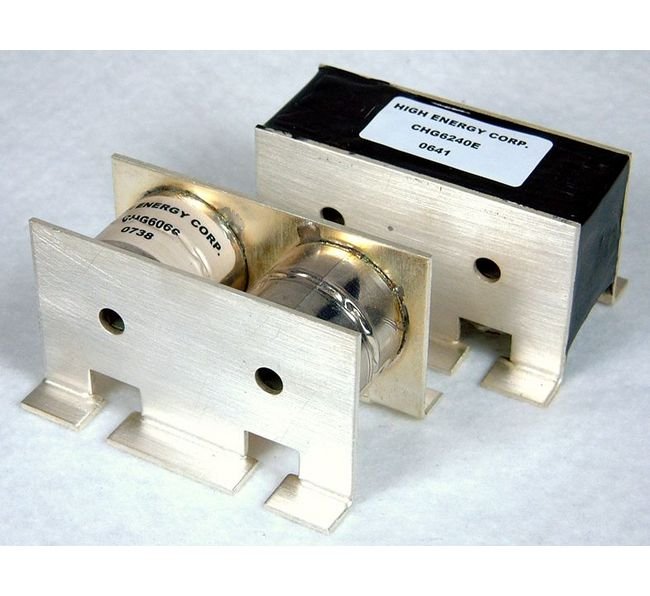

The Epoxied CHG Series Metallized Film Capacitor is a high-performance electronic component designed for demanding applications. With a working voltage of up to 700 VRMS and a capacitance range of 0.11 to 2.4 µF, this capacitor ensures reliable operation and efficient power handling. It features conduction cooling, series & parallel stackability, and compact dimensions for easy integration. Ideal for industrial and institutional use, this capacitor meets stringent standards for power output, reliability, and durability.

Product Specifications

Specifications Cap

0.33 µF

Specifications Capacitance Range

0.11 to 2.4 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

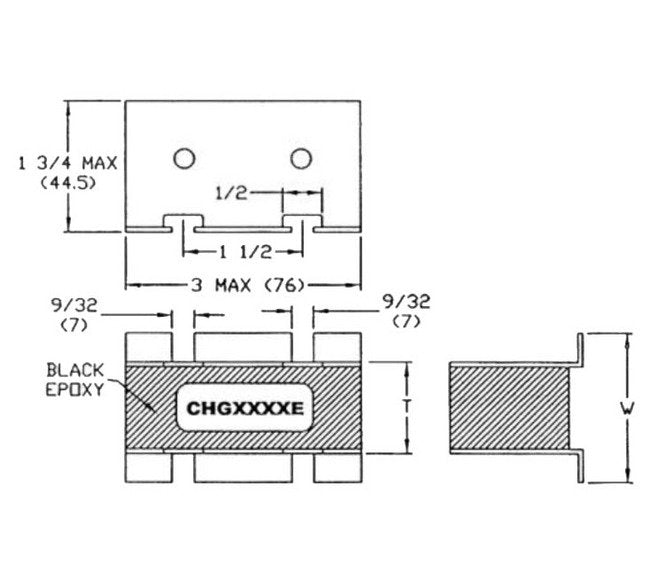

Specifications Dimensions

3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm

Specifications Dimension T

7/8 in | 22.2 mm

Specifications Dimension W

1 11/16 in | 42.8 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

295 kHz

Specifications Fl

197 kHz

Specifications Fmax

500 kHz

Specifications Imax Rms

350 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

200 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.14 kg | 0.30 lb

CHG Series Epoxy-Sealed Metallized Film Capacitor
