CHG Series Metallized Capacitor - High Voltage, High Power
CHG Series Metallized Capacitor - High Voltage, High Power
SKU:MET-a1ee20
High-performance CHG Series Metallized Film Capacitor, ideal for demanding applications requiring up to 700 VRMS Working Voltage, 375 kVA Max Power, and 625 ARMS Max Current.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
CHG Series Metallized Capacitor - High Voltage, High Power
$79.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Capacitor - High Voltage, High Power
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

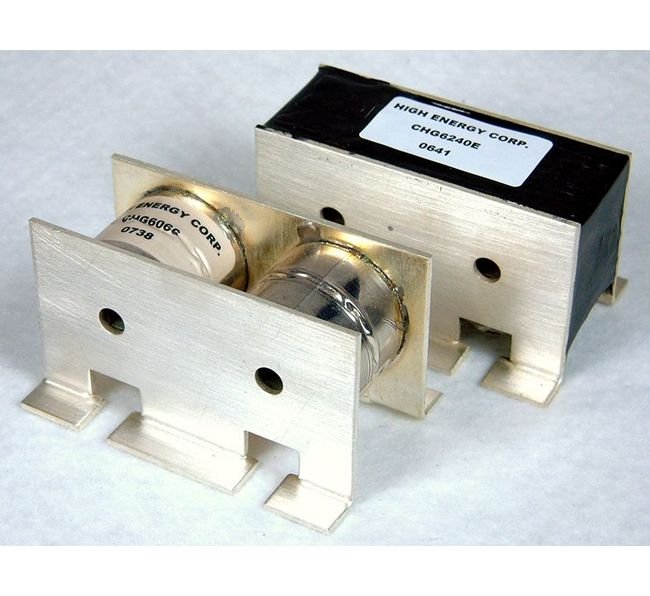

The Standard CHG Series Metallized Film Capacitor is a top-of-the-line solution for demanding applications requiring up to 700 VRMS Working Voltage, 375 kVA Max Power, and 625 ARMS Max Current. With a capacitance range of 0.11 to 2.4 µF and ±10% Capacitance Tolerance, this capacitor ensures precise performance. Its conduction-cooled design, series & parallel stackable feature, and compact dimensions make it versatile for various setups. Ideal for high-frequency applications with a frequency range of 270 kHz to 500 kHz, this capacitor offers low dissipation factor and stray inductance, ensuring efficient and reliable operation. Trusted by institutions and government agencies for its exceptional quality and performance, the CHG Series is a reliable choice for critical projects.
Product Specifications
Specifications Cap
0.21 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

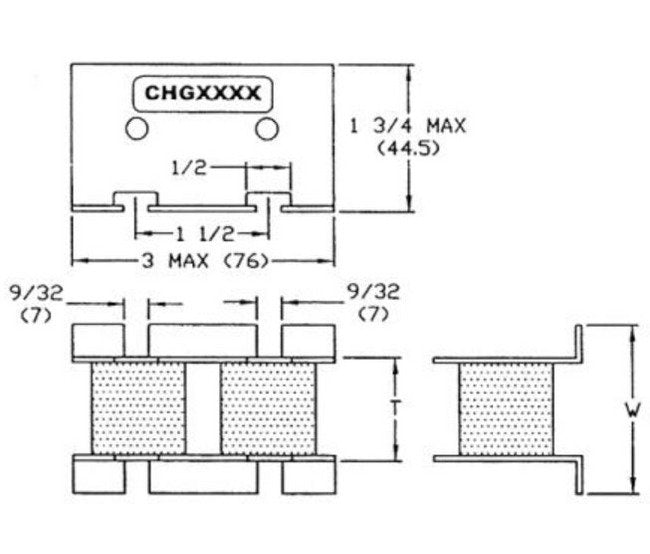

Specifications Dimensions
3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm
Specifications Dimension T
7/8 in | 22.2 mm
Specifications Dimension W
1 11/16 in | 42.8 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
389 kHz
Specifications Fl
270 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
300 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
175 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.14 kg | 0.30 lb
