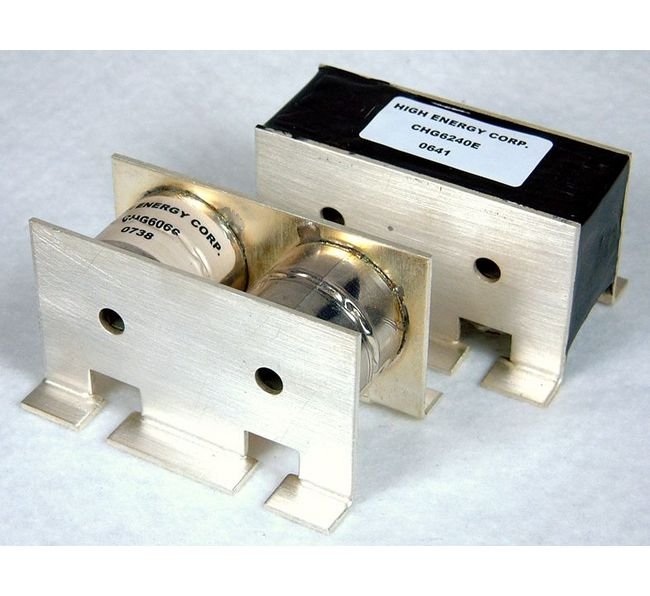

The Epoxied CHG Series Metallized Film Capacitor is a high-performance component designed for demanding applications. With a capacitance range of 0.11 to 2.4 µF and a voltage rating of 500 V, this capacitor delivers efficient operation with a maximum dissipation factor of 0.1%. It is conduction-cooled by bus bars, ensuring reliability even in challenging environments. The compact dimensions of 3 x 2 x 1 3/4 in make it versatile for various setups. Ideal for industrial and institutional use, this capacitor meets rigorous standards for performance and longevity.
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

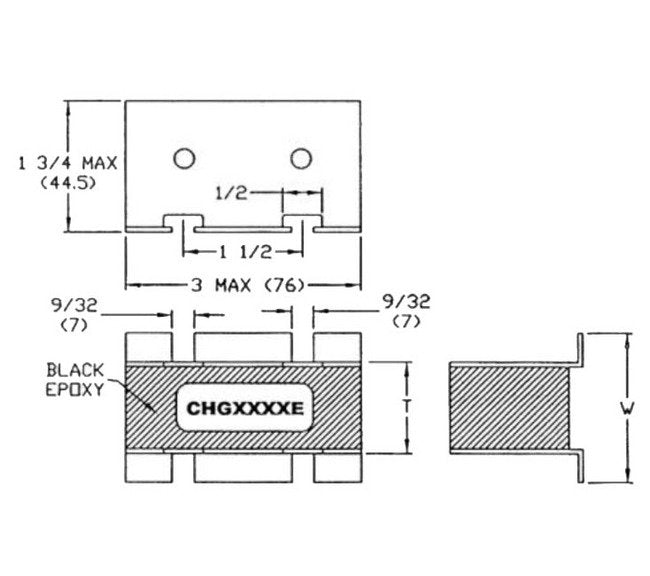

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
106 kHz
Specifications Fl
106 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
400 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
500 V
Specifications Weight
0.23 kg | 0.50 lb
