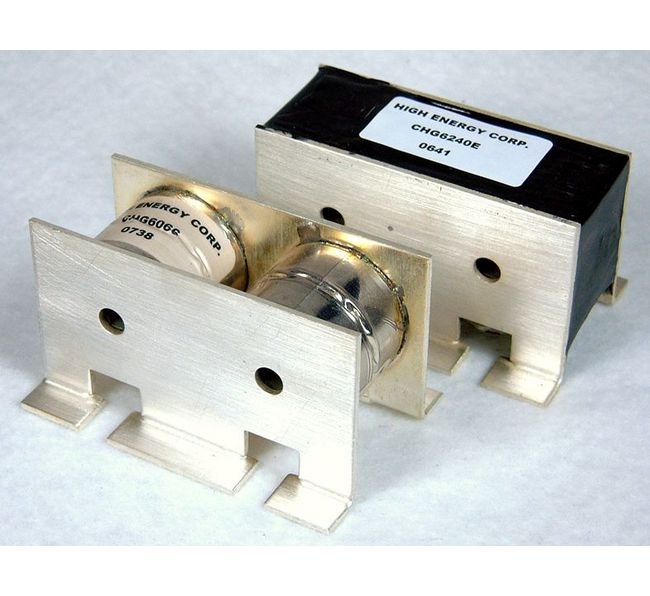

The CHG Series Metallized Film Capacitor is a superior choice for industrial applications requiring high reliability and performance. With a capacitance of 0.11 µF and a working voltage of 700 VRMS, this capacitor offers exceptional power handling capabilities up to 375 kVA and a maximum current of 625 ARMS. Designed to be conduction-cooled by bus bars, it ensures efficient heat dissipation and reliable operation. Stackable in both series and parallel configurations, this capacitor provides versatility and ease of integration into various systems.
Product Specifications
Specifications Cap
0.11 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

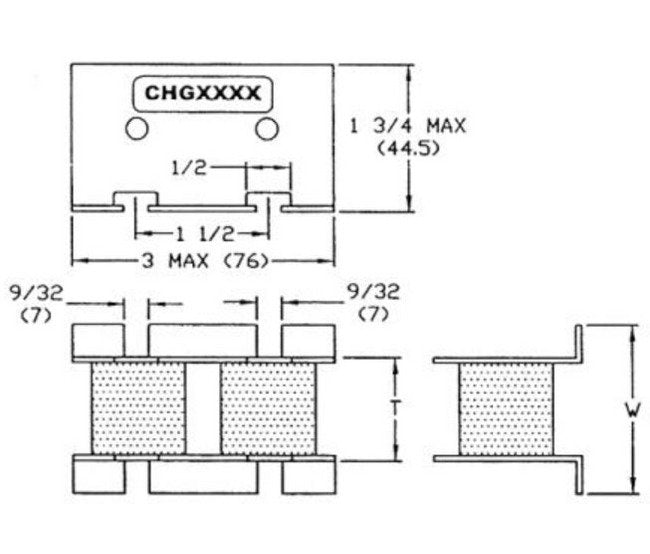

Specifications Dimensions
3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm
Specifications Dimension T
7/8 in | 22.2 mm
Specifications Dimension W
1 11/16 in | 42.8 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
375 kHz
Specifications Fl
369 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
180 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
125 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.14 kg | 0.30 lb
