CHG Series Metallized Film Capacitor - 0.33 µF, 700 V
CHG Series Metallized Film Capacitor - 0.33 µF, 700 V
SKU:MET-d61239
High-performance CHG Series Metallized Film Capacitor - 0.33 µF, 700 V. Reliable, compact, and efficient. Meets industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - 0.33 µF, 700 V
$29.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - 0.33 µF, 700 V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

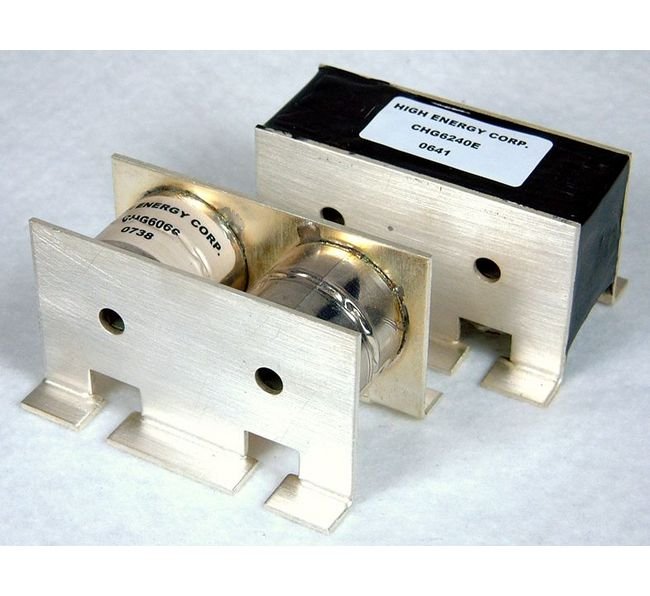

The Epoxied CHG Series Metallized Film Capacitor is a high-performance component built for demanding applications. With a capacitance of 0.33 µF and a maximum RMS voltage of 700 V, this capacitor ensures reliable operation in various electrical systems. Its compact dimensions of 3 x 2 x 1 3/4 inches make it easy to integrate, while the conduction cooling method provides efficient heat dissipation. Designed with precision and durability in mind, this capacitor meets stringent industry standards, making it an ideal choice for institutional and government procurement needs.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

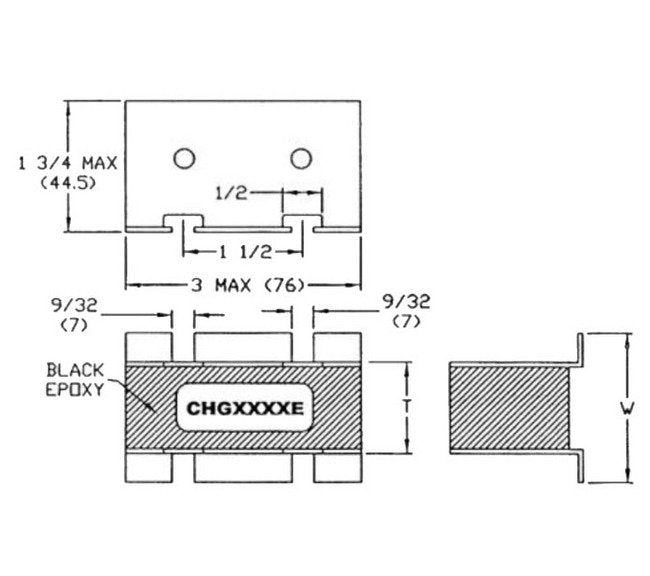

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
295 kHz
Specifications Fl
197 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
350 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.23 kg | 0.50 lb
