CHG Series Metallized Film Capacitor - 0.33 µF, 700 VRMS
CHG Series Metallized Film Capacitor - 0.33 µF, 700 VRMS
SKU:MET-150af3
High-performance CHG Series Metallized Film Capacitor - 0.33 µF, 700 VRMS, ideal for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - 0.33 µF, 700 VRMS
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - 0.33 µF, 700 VRMS
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

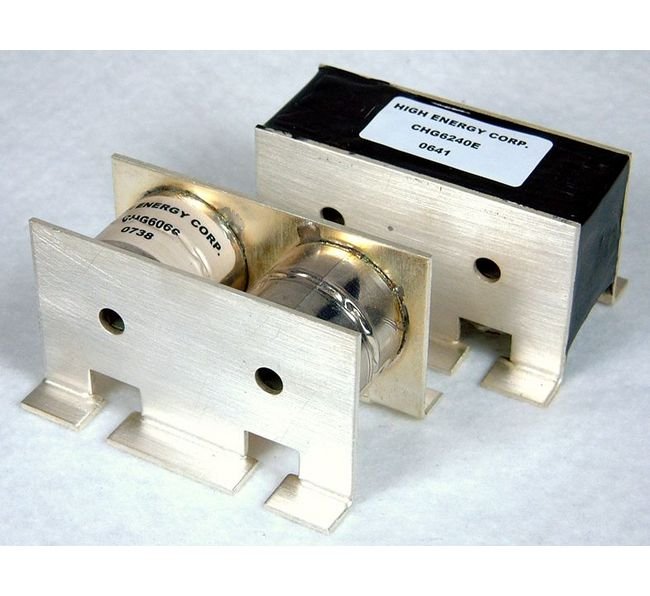

The Standard CHG Series Metallized Film Capacitor offers exceptional performance in demanding applications, with a capacitance of 0.33 µF and a working voltage of up to 700 VRMS. With a compact design and conduction-cooled construction, this capacitor delivers reliable power handling up to 375 kVA and 625 ARMS, making it ideal for industrial and institutional settings. Its robust specifications, including a capacitance range of 0.11 to 2.4 µF and operating temperature up to +90 ºC, ensure consistent operation under varying conditions. Trust in the durability and efficiency of the CHG Series for your critical power needs.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

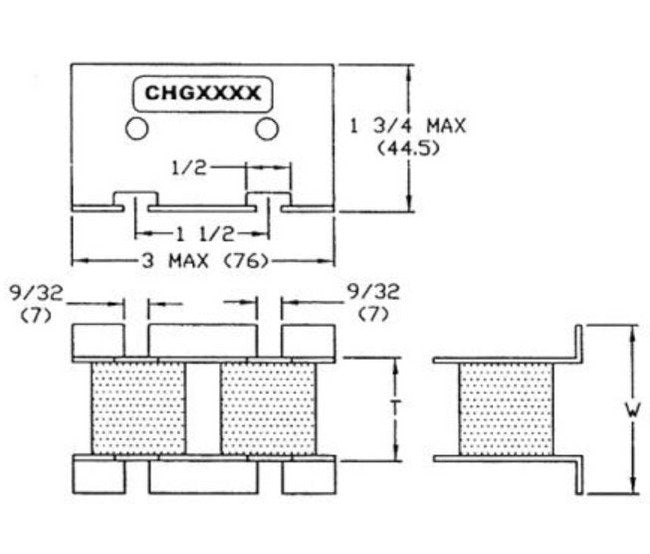

Specifications Dimensions
3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm
Specifications Dimension T
7/8 in | 22.2 mm
Specifications Dimension W
1 11/16 in | 42.8 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
295 kHz
Specifications Fl
197 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
350 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.14 kg | 0.30 lb
