CHG Series Metallized Film Capacitor, 0.51 µF - 650V
CHG Series Metallized Film Capacitor, 0.51 µF - 650V
SKU:MET-b781de
High-performance Epoxied CHG Series Metallized Film Capacitor for industrial applications. Capacitance: 0.51 µF, Voltage: 650V RMS.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor, 0.51 µF - 650V
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor, 0.51 µF - 650V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

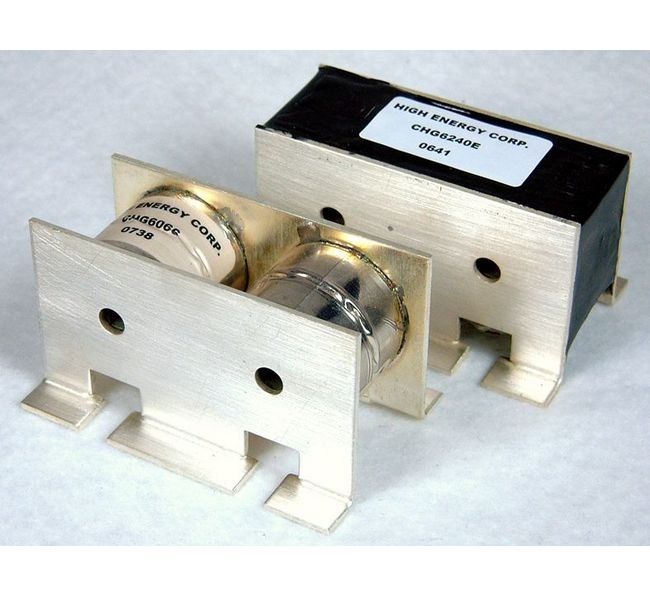

The Epoxied CHG Series Metallized Film Capacitor offers exceptional performance with a capacitance range of 0.11 to 2.4 µF and a working voltage of up to 650V RMS. With a compact design of 3 x 2 x 1 3/4 inches and conduction cooling capability, this capacitor is ideal for high-power applications in both series and parallel configurations. Its low dissipation factor of 0.1% and minimal stray inductance ensure superior efficiency and reliability. Meeting stringent industry standards, this capacitor is a reliable choice for institutional and government buyers seeking top-tier performance.
Product Specifications
Specifications Cap
0.51 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

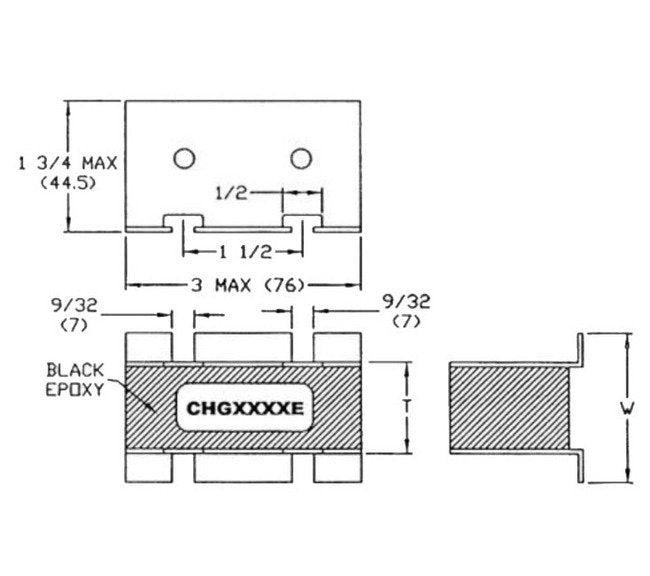

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
283 kHz
Specifications Fl
203 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
500 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
275 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
650 V
Specifications Weight
0.23 kg | 0.50 lb
