CHG Series Metallized Film Capacitor - 0.51 µF, 650V
CHG Series Metallized Film Capacitor - 0.51 µF, 650V
SKU:MET-3a394d
High-performance 0.51 µF CHG Series Metallized Film Capacitor, 650V. Ideal for institutional and government applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - 0.51 µF, 650V
$34.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - 0.51 µF, 650V
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

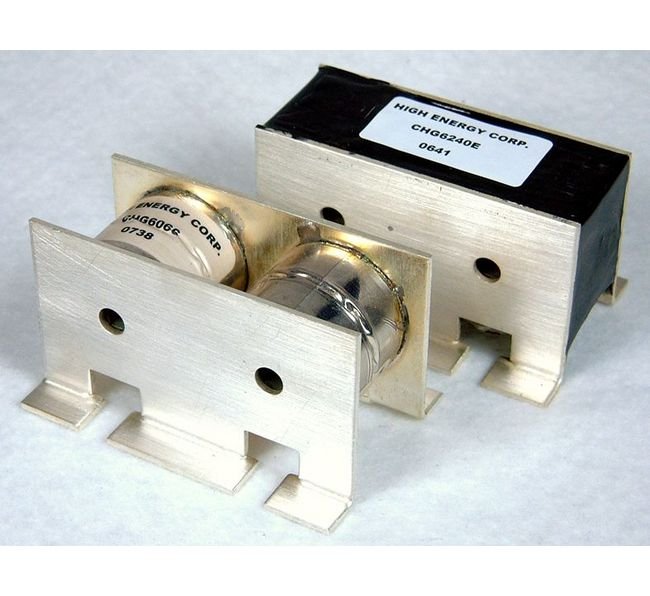

The Epoxied CHG Series Metallized Film Capacitor is a reliable solution for high-performance electrical applications. With a capacitance of 0.51 µF and a maximum working voltage of 650V, this capacitor ensures efficient power handling. It features a compact design, suitable for series and parallel stacking, and conduction-cooled by bus bars for optimal heat dissipation. Meeting strict industry standards, this capacitor offers a capacitance tolerance of ±10% and operates at temperatures up to +90 ºC. Ideal for institutional and government use with specifications conforming to federal procurement requirements.
Product Specifications
Specifications Cap
0.51 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

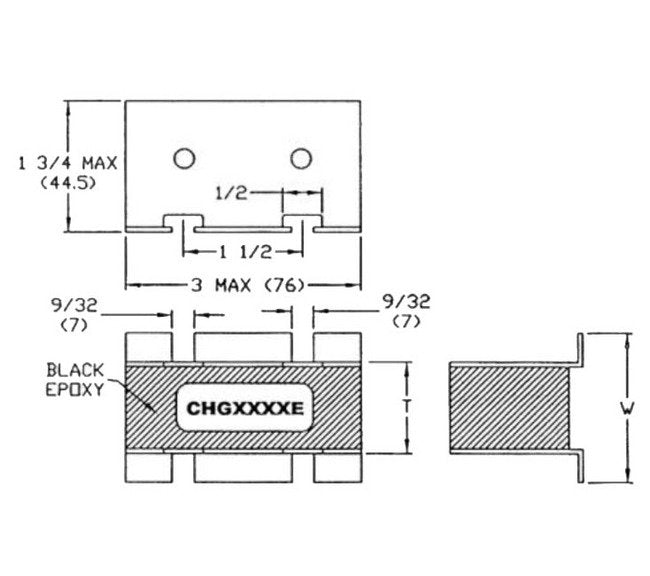

Specifications Dimensions
3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm
Specifications Dimension T
7/8 in | 22.2 mm
Specifications Dimension W
1 11/16 in | 42.8 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
283 kHz
Specifications Fl
203 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
500 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
275 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
650 V
Specifications Weight
0.14 kg | 0.30 lb
