CHG Series Metallized Film Capacitor - 0.66 µF, 600 V
CHG Series Metallized Film Capacitor - 0.66 µF, 600 V
SKU:MET-748ce2
High-performance 0.66 µF Metallized Film Capacitor with 600 V RMS. Stackable design for versatile applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - 0.66 µF, 600 V
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - 0.66 µF, 600 V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

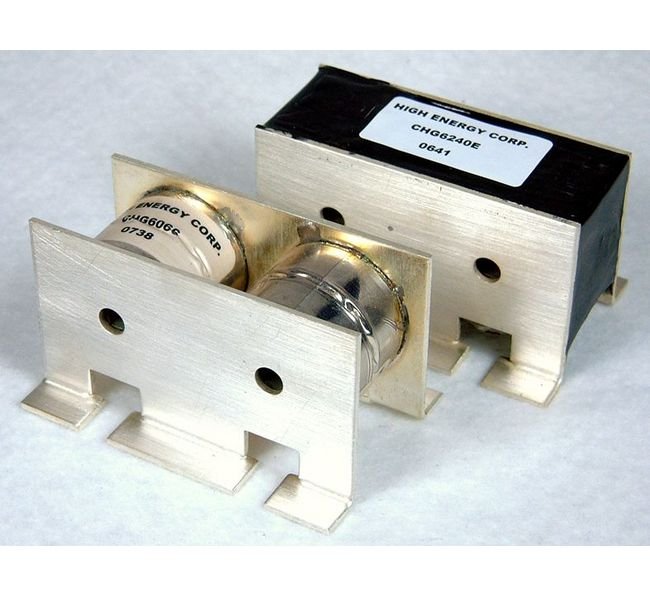

The Epoxied CHG Series Metallized Film Capacitor offers exceptional performance with a capacitance of 0.66 µF and a working voltage of 600 V RMS. With a high-quality construction, this capacitor ensures reliable operation in demanding environments. Its compact dimensions of 3 x 2 x 1 3/4 inches and conduction-cooled design make it ideal for space-constrained applications. The CHG Series is stackable in series and parallel configurations, allowing for versatile integration and maximizing power efficiency. This capacitor is designed to meet stringent institutional procurement standards, making it a reliable choice for government and industry buyers seeking top-tier performance.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

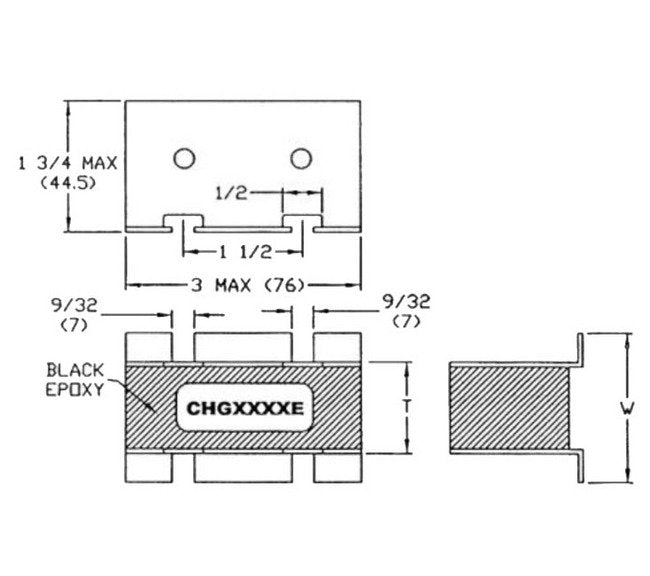

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
290 kHz
Specifications Fl
218 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
625 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
325 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.23 kg | 0.50 lb
