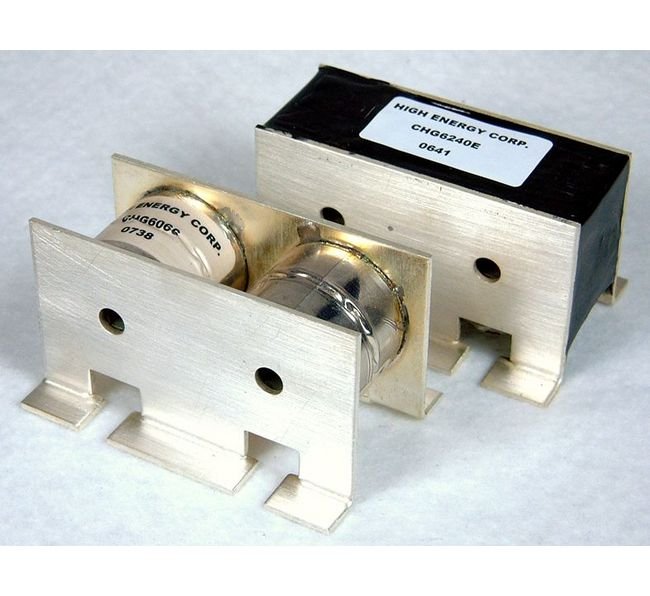

CHG Series Metallized Film Capacitor - High Performance and Reliable

Name: CHG Series Metallized Film Capacitor - High Performance and Reliable
Brand: High Energy Corp.
SKU: MET-b4b658
Price: 59.99 USD
Availability: OutOfStock

SKU:MET-b4b658

CHG Series Metallized Film Capacitor - High-performance solution for reliable power handling in institutional applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Standard CHG Series Metallized Film Capacitor is a cutting-edge solution for institutions seeking high-quality electrical components. With a capacitance range from 0.11 to 2.4 µF and a working voltage of up to 400 V, this capacitor provides exceptional power handling capabilities. Designed for reliability, it can handle up to 375 kVA max power with conduction-cooled cooling method. Meeting strict industry standards, including ±10% capacitance tolerance and a dissipation factor of 0.1% maximum, this capacitor ensures efficient and safe operation in diverse applications.

Product Specifications

Specifications Cap

2.4 µF

Specifications Capacitance Range

0.11 to 2.4 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

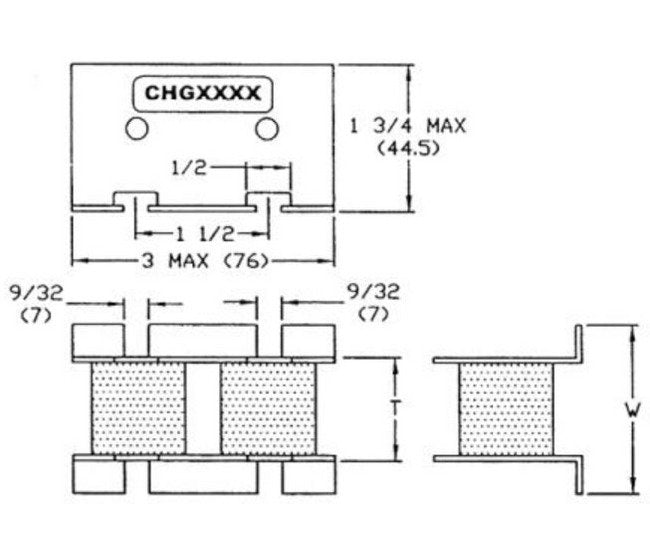

Specifications Dimensions

3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm

Specifications Dimension T

1 3/16 in | 30.2 mm

Specifications Dimension W

2 in | 51 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

83 kHz

Specifications Fl

83 kHz

Specifications Fmax

500 kHz

Specifications Imax Rms

500 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

200 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

400 V

Specifications Weight

0.23 kg | 0.50 lb
