CHG Series Metallized Film Capacitor - High Performance & Reliable Capacitor for Industrial Applications

Name: CHG Series Metallized Film Capacitor - High Performance & Reliable Capacitor for Industrial Applications
Brand: High Energy Corp.
SKU: MET-319454
Price: 49.99 USD
Availability: OutOfStock

SKU:MET-319454

High-performance CHG Series Metallized Film Capacitor for industrial applications, with 650V RMS and 0.11-2.4 µF capacitance range.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

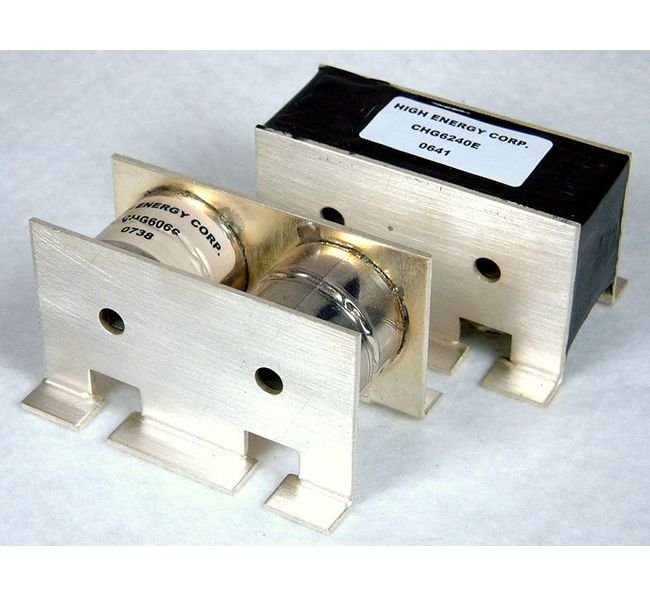

The Standard CHG Series Metallized Film Capacitor is a trusted component designed for demanding industrial applications. With a Capacitance Range of 0.11 to 2.4 µF and a VMAX (RMS) of 650 V, this capacitor ensures reliable performance under various operating conditions. Its compact dimensions of 3 x 1 11/16 x 1 3/4 in and conduction-cooled design make it easy to integrate. Meeting ±10% Standard Capacitance Tolerance and operating at temperatures up to +90 ºC, this capacitor guarantees precision and stability. Ideal for series & parallel stacking, it offers superior performance with a Dissipation Factor of 0.1% maximum and Stray Inductance below 5 nH.

Product Specifications

Specifications Cap

0.51 µF

Specifications Capacitance Range

0.11 to 2.4 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

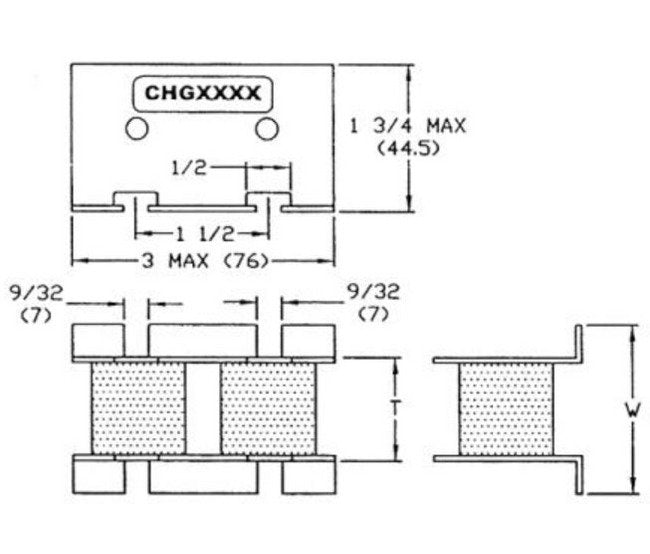

Specifications Dimensions

3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm

Specifications Dimension T

7/8 in | 22.2 mm

Specifications Dimension W

1 11/16 in | 42.8 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

283 kHz

Specifications Fl

203 kHz

Specifications Fmax

500 kHz

Specifications Imax Rms

500 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

275 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

650 V

Specifications Weight

0.14 kg | 0.30 lb
