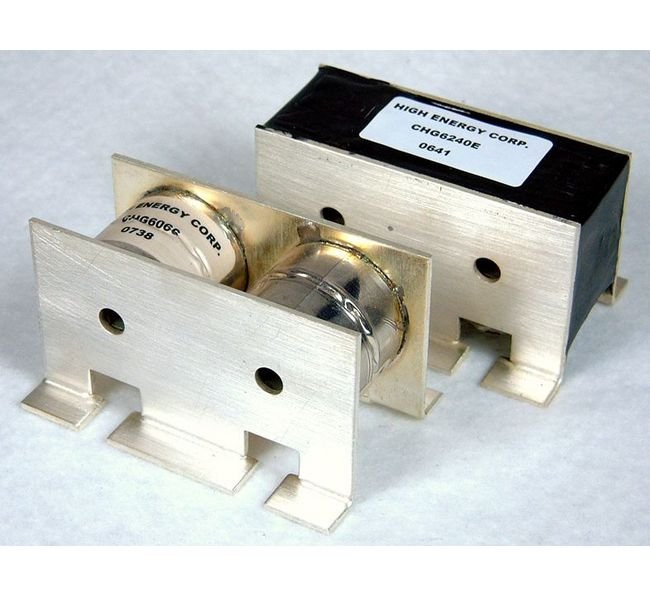

The Standard CHG Series Metallized Film Capacitor offers exceptional performance with a capacitance range of 0.11 to 2.4 µF, VMAX rating of 600 V, and high power handling capabilities up to 325 kV·A. Designed for demanding applications, this capacitor features conduction cooling, series & parallel stackability, and a compact size of 3 x 1 11/16 x 1 3/4 in. With a low dissipation factor and stray inductance, it ensures efficient and reliable operation at temperatures up to +90 ºC.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

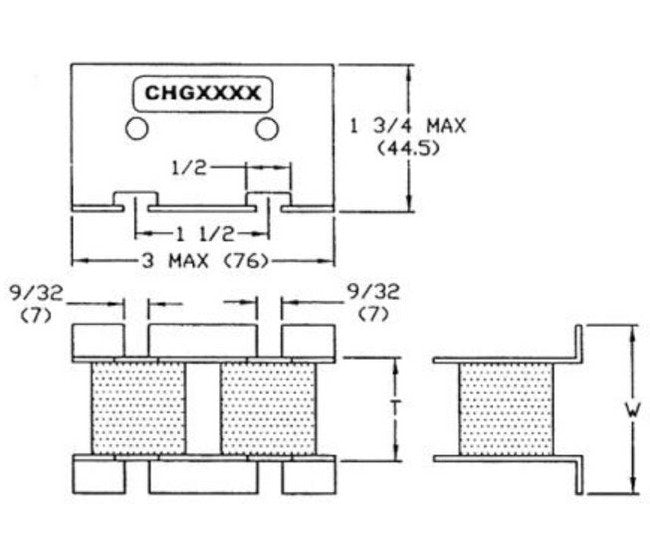

Specifications Dimensions
3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm
Specifications Dimension T
7/8 in | 22.2 mm
Specifications Dimension W
1 11/16 in | 42.8 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
290 kHz
Specifications Fl
218 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
625 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
325 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.14 kg | 0.30 lb
