CHG Series Metallized Film Capacitor - High Voltage
CHG Series Metallized Film Capacitor - High Voltage
SKU:MET-13d5cc
High-voltage CHG Series capacitor with up to 700 VRMS, ideal for demanding environments. Stackable design for versatile applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - High Voltage
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - High Voltage
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

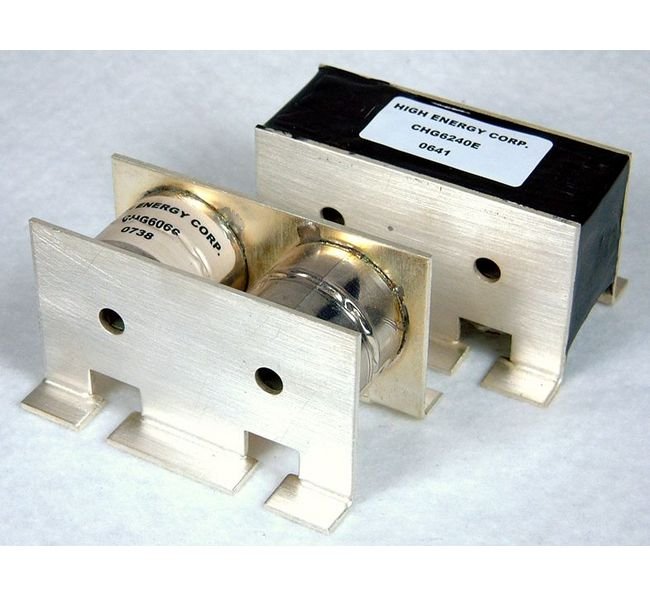

The Epoxied CHG Series Metallized Film Capacitor is a cutting-edge solution for high-voltage applications, offering a working voltage of up to 700 VRMS and a maximum power capacity of 375 kVA. With a capacitance range from 0.11 to 2.4 µF and conduction-cooled design, this capacitor is ideal for demanding environments requiring reliable performance. Its compact dimensions of 3 x 1 11/16 x 1 3/4 in make it easily stackable in series and parallel configurations. Experience superior performance and durability with the Epoxied CHG Series Metallized Film Capacitor, meeting the exacting standards of both consumer and institutional buyers.
Product Specifications
Specifications Cap
0.11 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

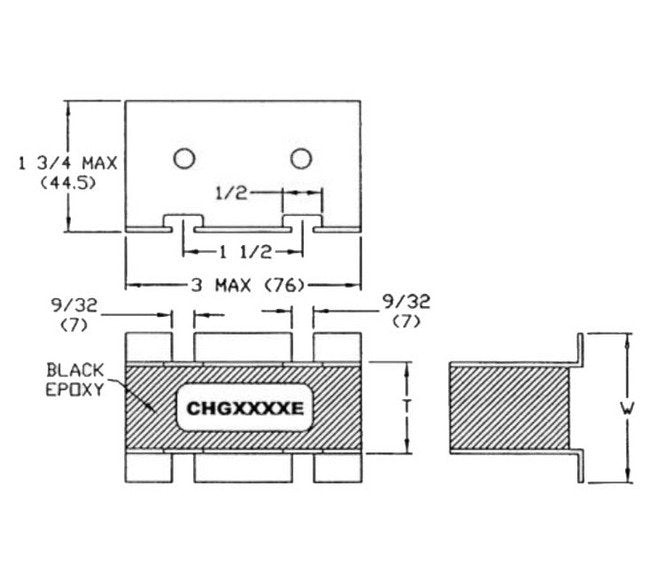

Specifications Dimensions
3 x 1 11/16 x 1 3/4 in | 76.2 x 37.8 x 39.2 mm
Specifications Dimension T
7/8 in | 22.2 mm
Specifications Dimension W
1 11/16 in | 42.8 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
375 kHz
Specifications Fl
369 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
180 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
125 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.14 kg | 0.30 lb
