CHG Series Metallized Film Capacitor - High Voltage, High Power
CHG Series Metallized Film Capacitor - High Voltage, High Power
SKU:MET-88cd01
High-performance CHG Series Metallized Film Capacitor with up to 700 VRMS working voltage and 375 kVA max power - ideal for demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - High Voltage, High Power
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - High Voltage, High Power
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

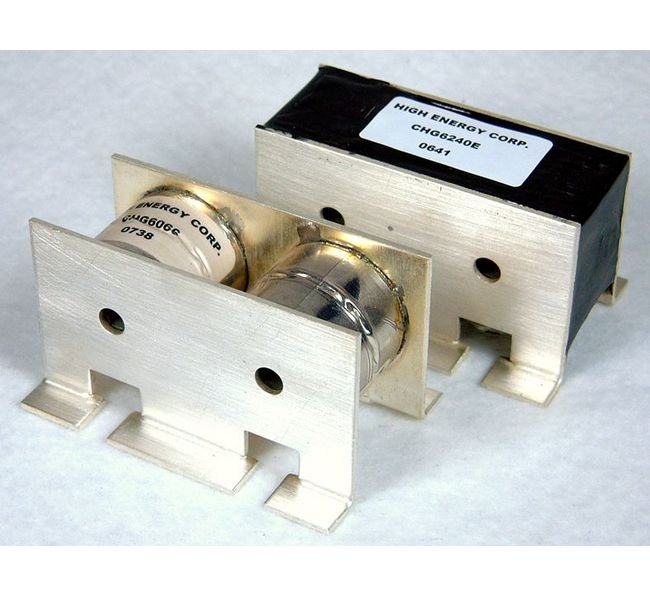

The Standard CHG Series Metallized Film Capacitor boasts a robust design with up to 700 VRMS working voltage, making it ideal for high-power applications. With a capacitance range of 0.11 to 2.4 µF and a maximum power of 375 kVA, this capacitor ensures reliable performance under demanding conditions. Designed to be conduction-cooled by bus bars, it offers low dissipation factor and stray inductance, ensuring efficient and stable operation. Its compact dimensions and weight make it a versatile choice for various electrical systems, from series to parallel stackable configurations.
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

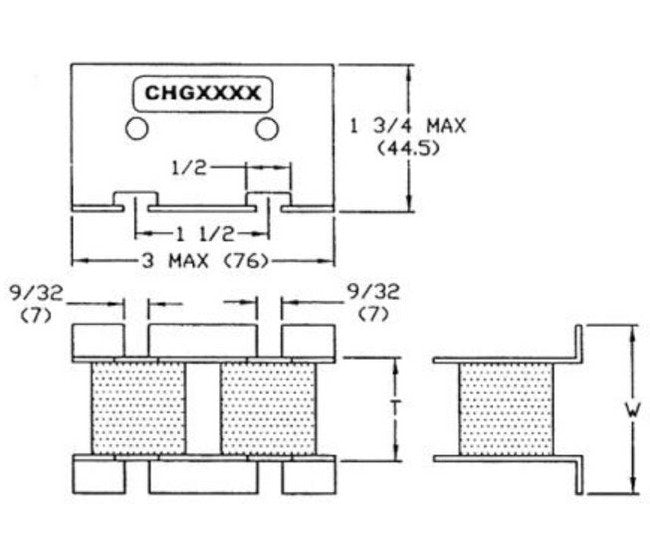

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
106 kHz
Specifications Fl
106 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
400 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
500 V
Specifications Weight
0.23 kg | 0.50 lb
