CHG Series Metallized Film Capacitor - High Voltage & Power
CHG Series Metallized Film Capacitor - High Voltage & Power
SKU:MET-8d30df
Powerful CHG Series Metallized Film Capacitor for high voltage applications and extreme power needs. Compact design, reliable performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - High Voltage & Power
$99.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - High Voltage & Power
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

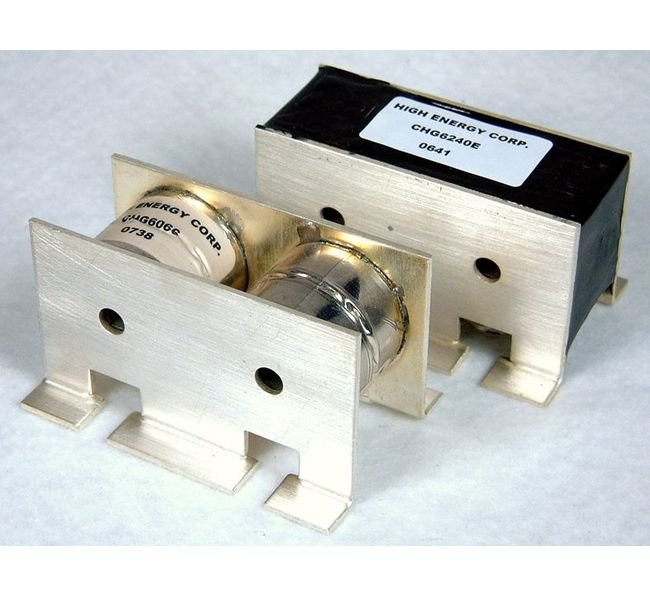

The Standard CHG Series Metallized Film Capacitor is a powerhouse with a capacitance range of 0.11 to 2.4 µF, VMAX (RMS) of 650V, and IMAX (RMS) of 500A. With a compact design measuring 3 x 2 x 1 3/4 inches and conduction cooling, this capacitor operates at temperatures up to +90 ºC efficiently. Its series & parallel stackable feature enhances versatility, making it ideal for various applications requiring high power handling. Meeting stringent industry standards, this capacitor ensures reliable performance and longevity in demanding environments.
Product Specifications
Specifications Cap
0.51 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

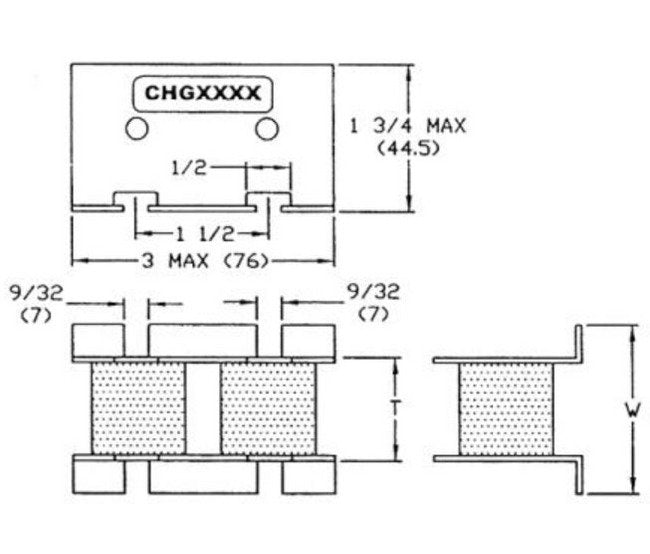

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
283 kHz
Specifications Fl
203 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
500 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
275 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
650 V
Specifications Weight
0.23 kg | 0.50 lb
