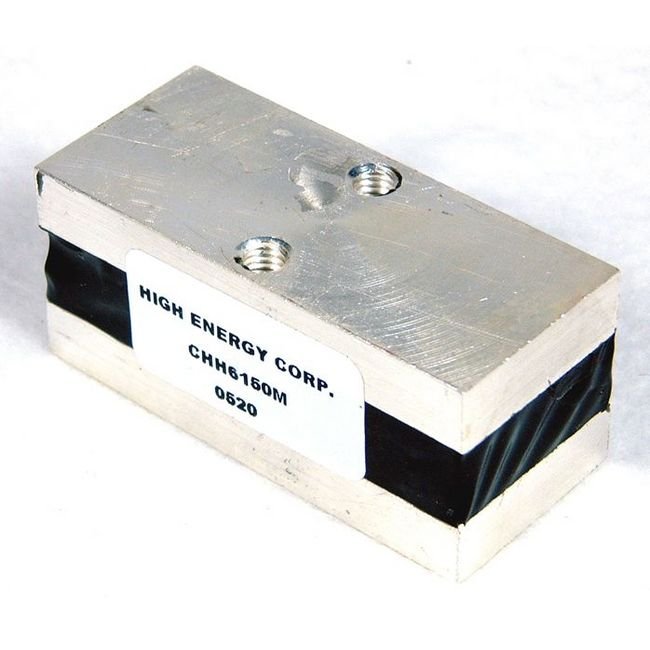

CHH Series Metallized Film Capacitors - 2.5 µF, 400V
CHH Series Metallized Film Capacitors - 2.5 µF, 400V
SKU:MET-61f895
High-performance 2.5 µF, 400V Metallized Film Capacitors for reliable power handling in industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHH Series Metallized Film Capacitors - 2.5 µF, 400V
$49.99
Quantity: 1
Claim Your Seller Account
CHH Series Metallized Film Capacitors - 2.5 µF, 400V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHH Series Metallized Film Capacitors offer exceptional performance with a capacitance of 2.5 µF and a maximum RMS voltage of 400V, ideal for demanding applications requiring high power handling. With a compact design of 2 11/16 x 1 3/16 x 1 3/16 in, these capacitors are conduction-cooled by bus bars, ensuring reliable operation up to +90 ºC. Their low dissipation factor of 0.1% and stray inductance of less than 5 nH make them efficient and precise components for critical systems. Meeting strict industry standards, these capacitors are stackable, offering flexibility in series and parallel configurations to suit various setups.
Product Specifications
Specifications Cap
2.5 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

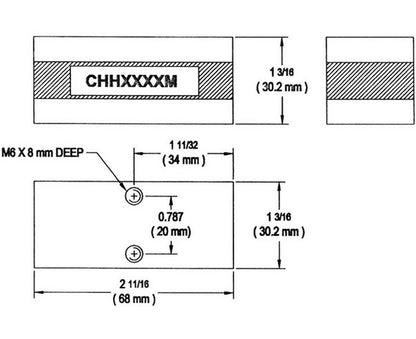

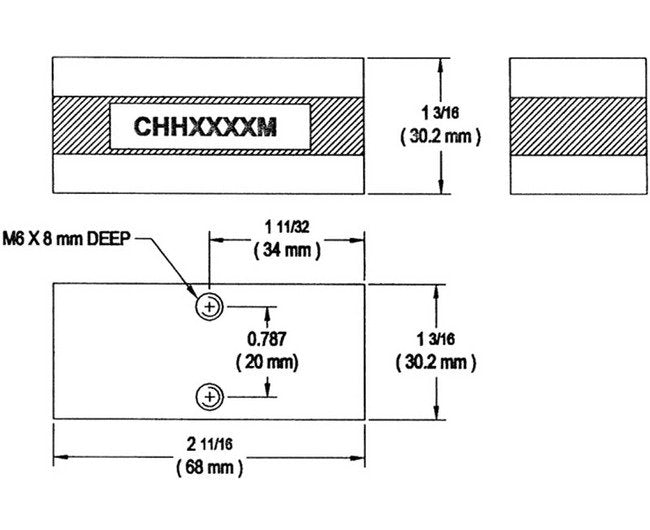

Specifications Dimensions
2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
64 kHz
Specifications Fl
64 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
400 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
400 V
Specifications Weight
0.5 kg | 1.1 lb
