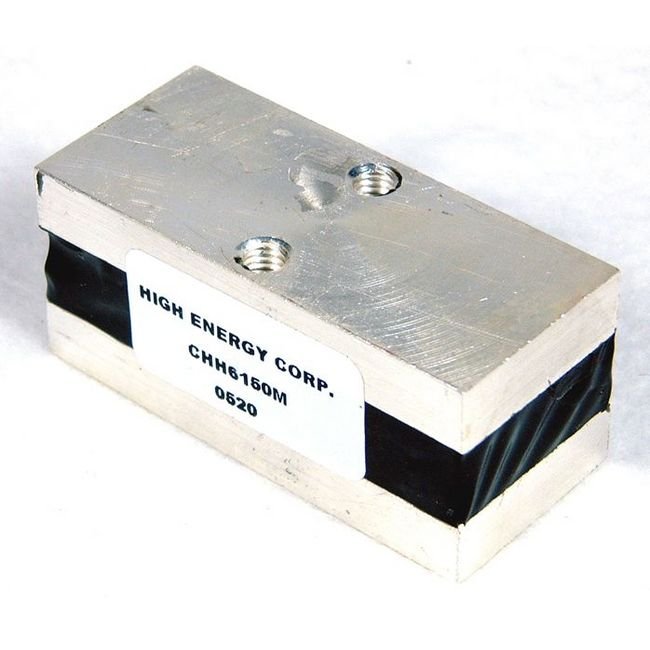

CHH Series Metallized Film Capacitors - High Voltage & Power
CHH Series Metallized Film Capacitors - High Voltage & Power
SKU:MET-ada341
High voltage & power metallized film capacitors for reliable performance in demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHH Series Metallized Film Capacitors - High Voltage & Power
$49.99
Quantity: 1
Claim Your Seller Account
CHH Series Metallized Film Capacitors - High Voltage & Power
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHH Series Metallized Film Capacitors are engineered to deliver exceptional performance in high-voltage applications, with a working voltage of up to 700 VRMS and a maximum power of 160 kVA. These capacitors support a wide capacitance range from 0.01 to 0.33 µF with a capacitance tolerance of ±10%. Designed for reliability and efficiency, they are conduction-cooled by bus bars and boast a low dissipation factor of 0.1% maximum. With dimensions of 2 11/16 x 1 3/16 x 1 3/16 inches and weighing 1.1 lbs, these capacitors are compact yet robust, making them ideal for series and parallel stackable applications. Trusted by government agencies and institutions for their superior quality and compliance with industry standards.
Product Specifications
Specifications Cap
0.01 to 0.33 µF
Specifications Capacitance Range
0.01 to 0.33 µF Custom
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

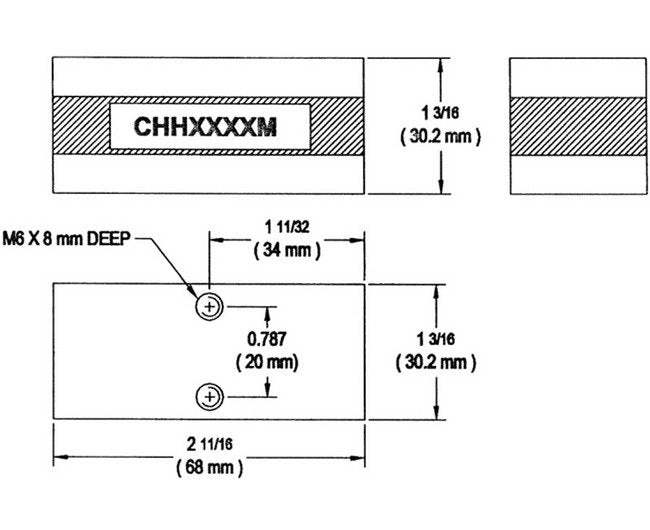

Specifications Dimensions
2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.5 kg | 1.1 lb
