Chicago Drop Forged Eye Bolt - Machine Thread 1/2" x 2"
Chicago Drop Forged Eye Bolt - Machine Thread 1/2" x 2"
SKU:WIR-7bee9e
Chicago Drop Forged Eye Bolt - Heat-treated steel, hot galvanized finish, 5:1 safety factor. Ideal for rigging applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Chicago Drop Forged Eye Bolt - Machine Thread 1/2" x 2"
$129.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Eye Bolt - Machine Thread 1/2" x 2"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

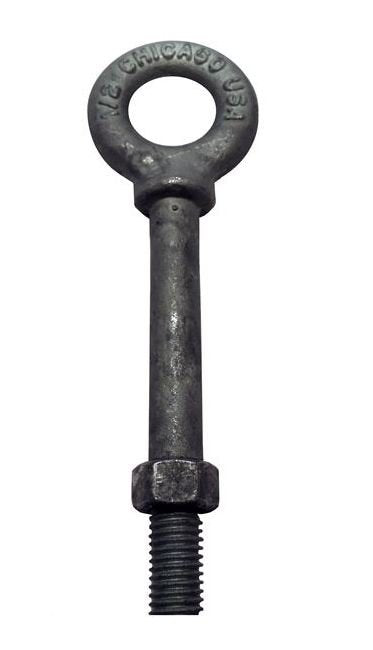

Constructed from heat-treated steel with a hot galvanized finish, these Chicago drop forged eye bolts offer exceptional strength and durability. Featuring a 5 to 1 safety factor, they are ideal for direct tension applications. Custom shank and thread lengths available. Designed for easy attachment to cable assemblies for secure lifting and rigging operations.

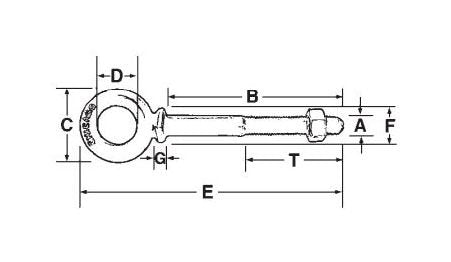

Product Specifications
Specifications Diameter A Shank Length B
1/2" x 2"
Specifications Inside Eye D
1"
Specifications Outside Eye C
2"
Specifications Outside Shoulder F
7/8"
Specifications Overall Length E
4-5/16"
Specifications Thickness At Shoulder G
5/32"
Specifications Thread Length T
1-7/8" "
Specifications Wll Lbs
2200
Specifications Wt Per 100 Pcs Lbs
44
CAGE
0T9L4
NAICS
332722
PSC
5306
