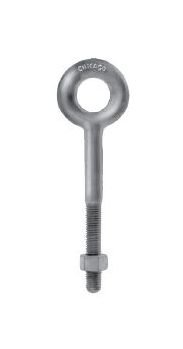

Chicago Drop Forged Eye Bolt - Machine Thread 5/8" x 10"

Chicago Drop Forged Eye Bolt - Machine Thread 5/8" x 10"

SKU:WIR-43bc5c

High-quality Chicago Drop Forged Eye Bolt - Machine Thread for reliable and durable performance in industrial applications.

Regular price $319.99
Regular price Sale price $319.99
Sale

Initiate Order

Chicago Drop Forged Eye Bolt - Machine Thread 5/8" x 10"

Chicago Drop Forged Eye Bolt - Machine Thread 5/8" x 10"

$319.99

Quantity: 1

Claim Your Seller Account

Chicago Drop Forged Eye Bolt - Machine Thread 5/8" x 10"

Chicago Drop Forged Eye Bolt - Machine Thread 5/8" x 10"

$319.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Drop Forged Eye Bolt Regular with Machine Thread is crafted from heat-treated steel, featuring a hot galvanized finish for enhanced durability. Designed with a safety factor of 5 to 1, these eye bolts are ideal for direct tension applications, ensuring reliability under loading conditions. Built with precision, the machine thread eye bolts meet stringent quality standards, providing exceptional strength and performance for various industrial and commercial settings. Additionally, these eye bolts can be customized with special shank and thread lengths to suit specific requirements.

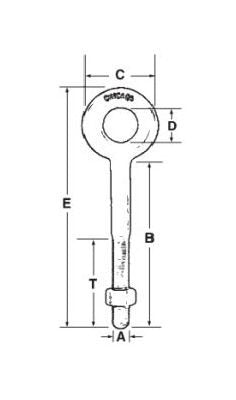

Product Specifications

Specifications Diameter A Shank Length B
5/8" x 10"
Specifications Inside Eye D
1-1/4"
Specifications Outside Eye C
2-5/16"
Specifications Overall Length E
12-5/16"
Specifications Thread Length T
4" "
Specifications Wll Lbs
3500
Specifications Wt Per 100 Pcs Lbs
129.5
CAGE
0T9L4
NAICS
332722
PSC
5306
