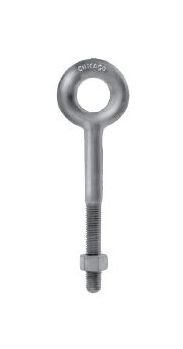

Chicago Drop Forged Eye Bolts - Machine Thread
Chicago Drop Forged Eye Bolts - Machine Thread
SKU:WIR-4859e7
Precision-crafted Chicago Eye Bolts for reliable cable assembly attachment. Galvanized steel with custom length options.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Chicago Drop Forged Eye Bolts - Machine Thread
$289.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Eye Bolts - Machine Thread
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Chicago Drop Forged Eye Bolts - Machine Thread are precision-crafted from heat-treated steel with a hot galvanized finish. Featuring machine-threaded assembly with hex nuts, these eye bolts boast a 5 to 1 safety factor. Designed for direct tension applications, deviations may compromise load limits. These USA-made eye bolts offer custom shank and thread lengths, ensuring secure attachment to cable assemblies.

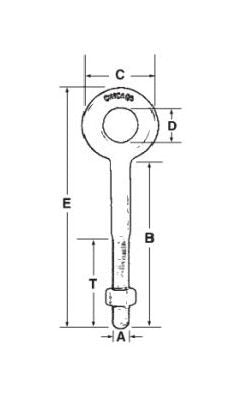

Product Specifications
Specifications Diameter A Shank Length B
7/8" x 5"
Specifications Inside Eye D
1-3/4"
Specifications Outside Eye C
3-1/2"
Specifications Overall Length E
8-1/2"
Specifications Thread Length T
2-1/2" "
Specifications Wll Lbs
7000
Specifications Wt Per 100 Pcs Lbs
245
CAGE
0T9L4
NAICS
332722
PSC
5306
