Chicago Drop Forged Eye Bolts - Machine Thread, 1" x 6"

Name: Chicago Drop Forged Eye Bolts - Machine Thread, 1" x 6"
Brand: Lexco Cable Manufacturing
SKU: WIR-12e7a5
Price: 459.99 USD
Availability: OutOfStock

SKU:WIR-12e7a5

Chicago Drop Forged Eye Bolts - Superior Strength & Reliability for Various Applications

$459.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

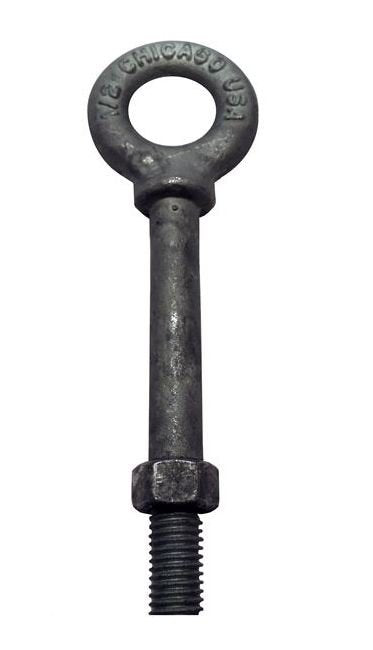

The Chicago Drop Forged Eye Bolts Shoulder with machine thread are meticulously crafted from heat-treated steel and feature a hot galvanized finish for enhanced durability. These eye bolts are designed with National Course threading before galvanizing, ensuring superior strength and reliability. Manufactured by Chicago Hardware & Fixture Company in the USA, these eye bolts have a 5 to 1 safety factor, with load capacities rigorously tested for quality assurance. Ideal for direct tension applications, these eye bolts are not only robust but also adaptable to custom requirements like special shank and thread lengths.

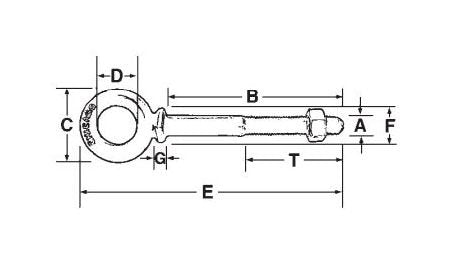

Product Specifications

Specifications Diameter A Shank Length B

1" x 6"

Specifications Inside Eye D

Specifications Outside Eye C

3-3/4"

Specifications Outside Shoulder F

1-3/4"

Specifications Overall Length E

10-1/2"

Specifications Thickness At Shoulder G

5/16"

Specifications Thread Length T

3" "

Specifications Wll Lbs

10000

Specifications Wt Per 100 Pcs Lbs

331

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Drop Forged Eye Bolts - Machine Thread, 1" x 6"
