Chicago Drop Forged Eye Bolts - Premium Strength & Durability for Heavy Loads

$235.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

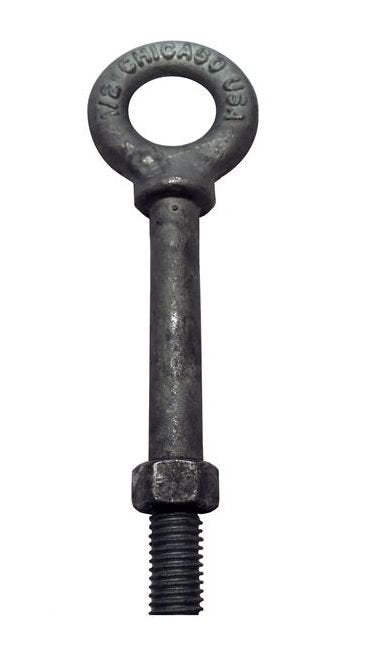

The Chicago Drop Forged Eye Bolts boast exceptional durability and strength, constructed from heat-treated steel with a hot galvanized finish. These machine-threaded eye bolts, featuring a 3/4" diameter and 6" shank length, are designed to withstand heavy loads with a 5 to 1 safety factor. Precision-engineered by Chicago Hardware & Fixture Company, these eye bolts ensure reliable performance for various applications, meeting stringent industry standards for quality and safety.

Product Specifications

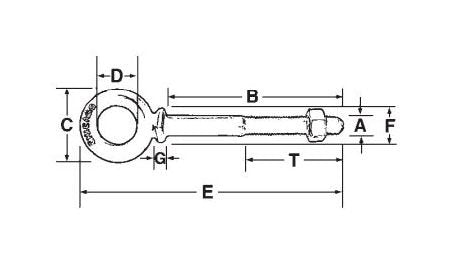

Specifications Diameter A Shank Length B

3/4" x 6"

Specifications Inside Eye D

1-1/2"

Specifications Outside Eye C

2-3/4"

Specifications Outside Shoulder F

1-3/8"

Specifications Overall Length E

9-1/8"

Specifications Thickness At Shoulder G

1/4"

Specifications Thread Length T

3" "

Specifications Wll Lbs

5200

Specifications Wt Per 100 Pcs Lbs

166

CAGE

0T9L4

NAICS

332722

PSC

5306
