Chicago Drop Forged Eye Bolts - Machine Thread

Chicago Drop Forged Eye Bolts - Machine Thread

SKU:WIR-1c4722

Chicago Drop Forged Eye Bolts for reliable and durable performance. Hot galvanized finish for corrosion resistance.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Chicago Drop Forged Eye Bolts - Machine Thread

Chicago Drop Forged Eye Bolts - Machine Thread

$129.99

Quantity: 1

Claim Your Seller Account

Chicago Drop Forged Eye Bolts - Machine Thread

Chicago Drop Forged Eye Bolts - Machine Thread

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

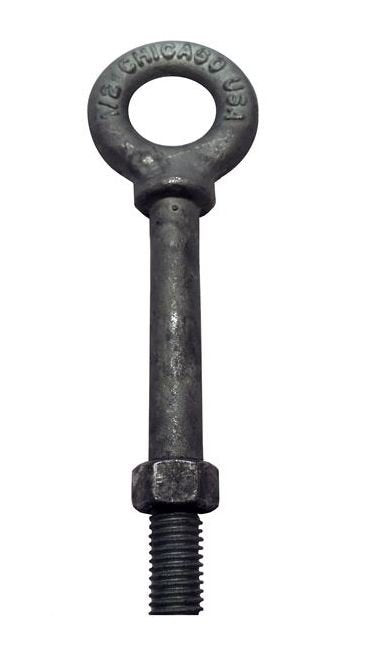

The Chicago Drop Forged Eye Bolts - Machine Thread are expertly crafted from heat treated steel with a hot galvanized finish, ensuring durability and corrosion resistance. These machine threaded eye bolts, with a safety factor of 5 to 1, boast precise dimensions and reliable performance. Accompanied by hex nuts tapped oversize, these eye bolts undergo rigorous testing to meet strict quality standards. Designed for efficiency and safety, these eye bolts are ideal for a wide range of applications with the option for special shank and thread lengths.

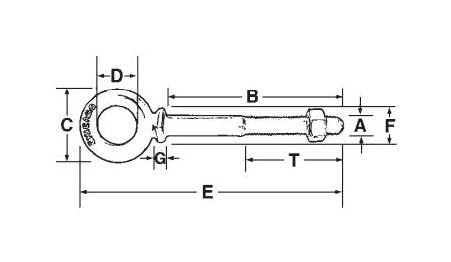

Product Specifications

Specifications Diameter A Shank Length B
1/4" x 2"
Specifications Inside Eye D
1/2"
Specifications Outside Eye C
1"
Specifications Outside Shoulder F
7/16"
Specifications Overall Length E
3-1/8"
Specifications Thickness At Shoulder G
5/64"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
500
Specifications Wt Per 100 Pcs Lbs
7.4
CAGE
0T9L4
NAICS
332722
PSC
5306
