Chicago Drop Forged Eye Bolts - Machine Thread 5/16" x 4-1/4"

Name: Chicago Drop Forged Eye Bolts - Machine Thread 5/16" x 4-1/4"
Brand: Lexco Cable Manufacturing
SKU: WIR-2a45ee
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-2a45ee

High-quality Chicago Drop Forged Eye Bolts - Machine Thread for secure cable attachments. 5/16" x 4-1/4". Made in the USA.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

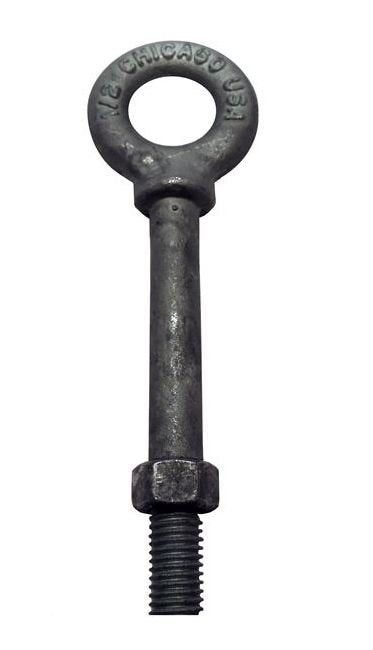

Enhance your lifting operations with these USA-made Chicago Drop Forged Eye Bolts. Crafted from heat-treated steel with a hot galvanized finish, these machine threaded eye bolts boast a 800 lbs Working Load Limit (WLL) and a safety factor of 5 to 1. Designed for direct tension pulls, these eye bolts are ideal for cable assemblies, offering durability and reliability. Customize with special shank and thread lengths to suit your specific needs.

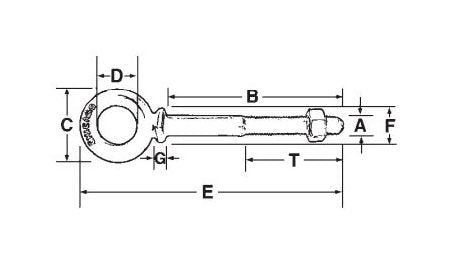

Product Specifications

Specifications Diameter A Shank Length B

5/16" x 4-1/4"

Specifications Inside Eye D

5/8"

Specifications Outside Eye C

1-1/4"

Specifications Outside Shoulder F

9/16"

Specifications Overall Length E

5-5/8"

Specifications Thickness At Shoulder G

3/32"

Specifications Thread Length T

2-1/2" "

Specifications Wll Lbs

800

Specifications Wt Per 100 Pcs Lbs

16.8

CAGE

0T9L4

NAICS

332722

PSC

5306
