Chicago Drop Forged Eye Bolts - Machine Thread 7/8" x 5"

Name: Chicago Drop Forged Eye Bolts - Machine Thread 7/8" x 5"
Brand: Lexco Cable Manufacturing
SKU: WIR-313b0f
Price: 299.99 USD
Availability: OutOfStock

SKU:WIR-313b0f

Chicago Drop Forged Eye Bolts - Machine Thread 7/8" x 5". High-strength steel with galvanized finish and 7,000 lbs WLL.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

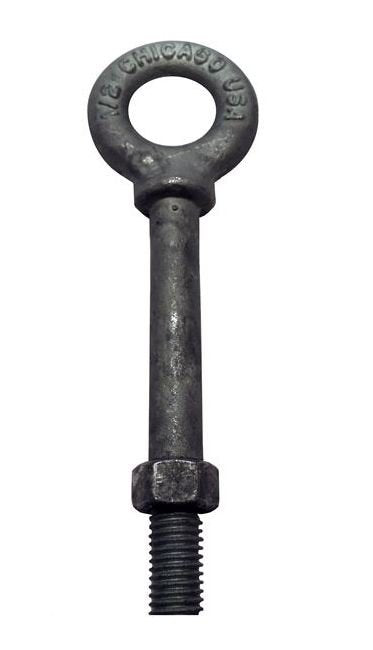

Meet your heavy-duty lifting needs with Chicago Hardware & Fixture Company's Drop Forged Eye Bolts. These heat-treated steel eye bolts, featuring a hot galvanized finish, offer exceptional strength and durability. The machine-threaded design, incorporating hex nuts, ensures secure assembly and reliable performance. With a 7,000 lbs Working Load Limit (WLL) and stringent safety factor adherence, these eye bolts excel under direct tension. Customize with special shank and thread lengths for tailored applications.

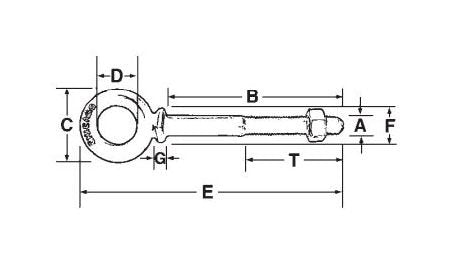

Product Specifications

Specifications Diameter A Shank Length B

7/8" x 5"

Specifications Inside Eye D

1-3/4"

Specifications Outside Eye C

3-1/2"

Specifications Outside Shoulder F

1-1/2"

Specifications Overall Length E

9-1/4"

Specifications Thickness At Shoulder G

9/32"

Specifications Thread Length T

2-1/2" "

Specifications Wll Lbs

7000

Specifications Wt Per 100 Pcs Lbs

222

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Drop Forged Eye Bolts - Machine Thread 7/8" x 5"
