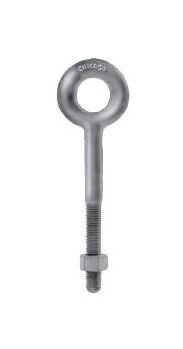

Chicago Drop Forged Eye Bolts - Machine Threaded, 5/16" x 2-1/4"
Chicago Drop Forged Eye Bolts - Machine Threaded, 5/16" x 2-1/4"
SKU:WIR-3a85f0
Premium Chicago Drop Forged Eye Bolts - Ideal for secure cable attachments, galvanized finish, safety factor 5:1
Regular price
$99.95
Regular price
Sale price
$99.95
Unit price
per
Initiate Order
Chicago Drop Forged Eye Bolts - Machine Threaded, 5/16" x 2-1/4"
$99.95
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Eye Bolts - Machine Threaded, 5/16" x 2-1/4"
$99.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Drop Forged Eye Bolts are meticulously crafted from heat-treated steel with a hot galvanized finish. These machine-threaded eye bolts, meeting an impressive 5 to 1 safety factor, ensure reliable performance under tension. Ideal for direct tension applications, these bolts come with special shank and thread length options. Will drastically reduce working load limits with any deviations. Made in the USA by Chicago Hardware & Fixture Company.

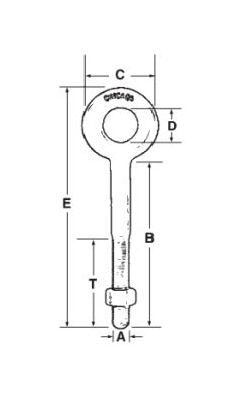

Product Specifications
Specifications Diameter A Shank Length B
5/16" x 2-1/4"
Specifications Inside Eye D
5/8"
Specifications Outside Eye C
1-1/4"
Specifications Overall Length E
3-1/2"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
800
Specifications Wt Per 100 Pcs Lbs
12.7
CAGE
0T9L4
NAICS
332722
PSC
5306
