Chicago Drop Forged Eye Bolts - Machine Threaded, Made in USA

Name: Chicago Drop Forged Eye Bolts - Machine Threaded, Made in USA
Brand: Lexco Cable Manufacturing
SKU: WIR-0c8386
Price: 299.99 USD
Availability: OutOfStock

SKU:WIR-0c8386

Premium Drop Forged Eye Bolts - Strong, Durable, USA-Made

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

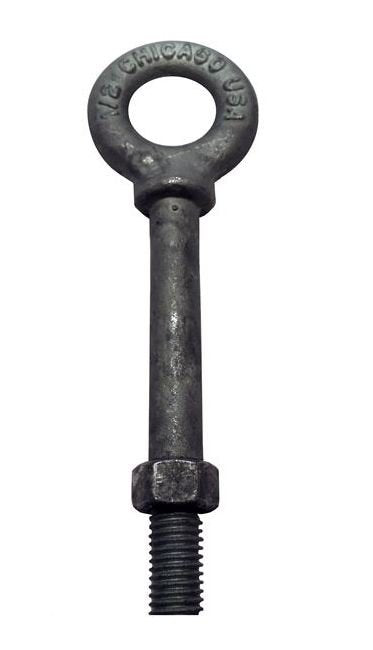

Chicago Hardware & Fixture Co. presents these high-quality drop forged steel eye bolts with a hot galvanized finish. The machine thread eye bolts are precision threaded to National Course standards, ensuring superior strength and durability. With a 5:1 safety factor, these eye bolts are designed for direct tension applications. Deviations in usage can significantly reduce load limits. Custom shank and thread lengths available upon request.

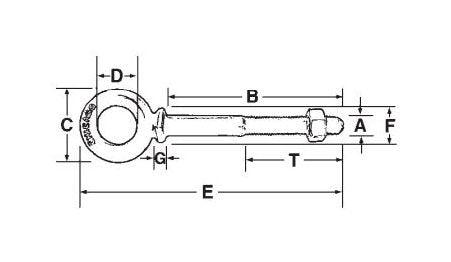

Product Specifications

Specifications Diameter A Shank Length B

5/16" x 2-1/4"

Specifications Inside Eye D

5/8"

Specifications Outside Eye C

1-1/4"

Specifications Outside Shoulder F

9/16"

Specifications Overall Length E

3-5/8"

Specifications Thickness At Shoulder G

3/32"

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

800

Specifications Wt Per 100 Pcs Lbs

12.9

CAGE

0T9L4

NAICS

332722

PSC

5306
