Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 1/4" x 4"
Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 1/4" x 4"
SKU:WIR-47444d
Chicago Drop Forged Eye Bolts - Superior quality, made in USA for durability and safety in lifting applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 1/4" x 4"
$89.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 1/4" x 4"
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

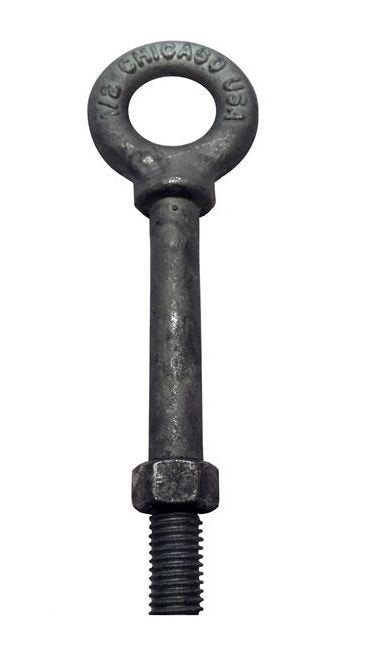

Experience the superior durability of Chicago Hardware & Fixture Company's Drop Forged Eye Bolts Shoulder. Made in the USA, these machine threaded eye bolts feature heat-treated steel with hot galvanized finish, ensuring long-lasting strength for your lifting needs. With precise specifications and a safety factor of 5 to 1, these eye bolts meet stringent industry standards and are ideal for both consumer and institutional applications. Trust Chicago Hardware for reliable performance and safety.

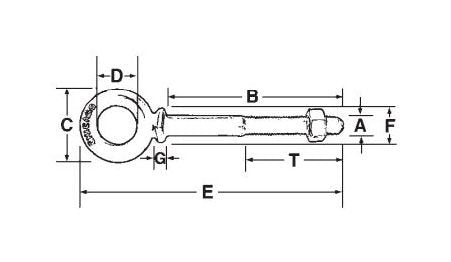

Product Specifications
Specifications Diameter A Shank Length B
1/4" x 4"
Specifications Inside Eye D
1/2"
Specifications Outside Eye C
1"
Specifications Outside Shoulder F
7/16"
Specifications Overall Length E
5-1/8"
Specifications Thickness At Shoulder G
5/64"
Specifications Thread Length T
2" "
Specifications Wll Lbs
500
Specifications Wt Per 100 Pcs Lbs
10.7
CAGE
0T9L4
NAICS
332722
PSC
5306
