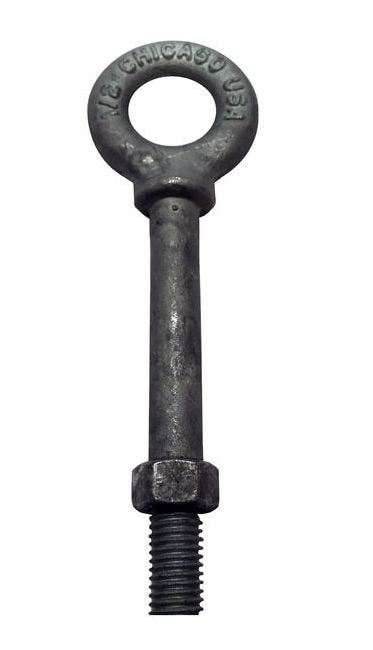

Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 7/8" x 8"

Name: Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 7/8" x 8"
Brand: Lexco Cable Manufacturing
SKU: WIR-a673b7
Price: 799.99 USD
Availability: OutOfStock

SKU:WIR-a673b7

Chicago drop forged eye bolts for durable and safe lifting operations. Custom options available.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your lifting operations with our Chicago drop forged heat-treated steel eye bolts featuring a hot galvanized finish. These machine threaded eye bolts, designed by Chicago Hardware & Fixture Company, offer exceptional durability and a superior safety factor of 5 to 1. Tested for direct tension, they deliver reliable performance. Any deviations from recommended usage can impact working load limits, ensuring safety and quality. Explore custom shank and thread lengths for tailored solutions.

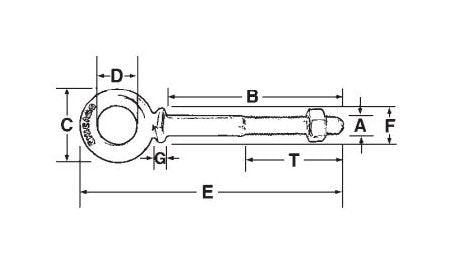

Product Specifications

Specifications Diameter A Shank Length B

7/8" x 8"

Specifications Inside Eye D

1-3/4"

Specifications Outside Eye C

3-1/2"

Specifications Outside Shoulder F

1-1/2"

Specifications Overall Length E

12-1/8"

Specifications Thickness At Shoulder G

9/32"

Specifications Thread Length T

4" "

Specifications Wll Lbs

7000

Specifications Wt Per 100 Pcs Lbs

269

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Drop Forged Eye Bolts Shoulder - Machine Thread 7/8" x 8"
