Chicago Drop Forged Eye Bolts - Steel Shoulder

Chicago Drop Forged Eye Bolts - Steel Shoulder

SKU:WIR-b711e4

High-quality Chicago Drop Forged Eye Bolts for secure cable assembly, heat-treated steel with galvanized finish, superior strength and performance.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Chicago Drop Forged Eye Bolts - Steel Shoulder

Chicago Drop Forged Eye Bolts - Steel Shoulder

$189.99

Quantity: 1

Claim Your Seller Account

Chicago Drop Forged Eye Bolts - Steel Shoulder

Chicago Drop Forged Eye Bolts - Steel Shoulder

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

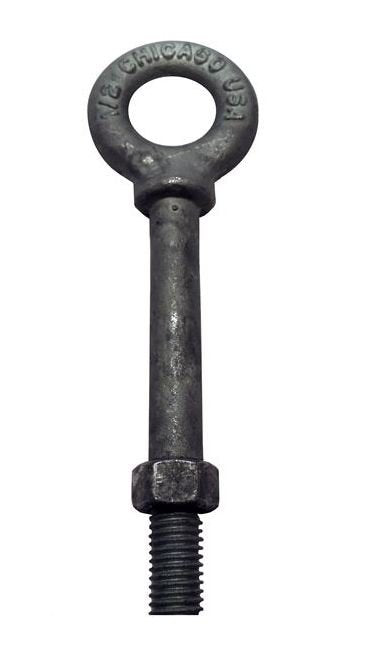

The Chicago Drop Forged Eye Bolts Shoulder with Machine Threads are expertly crafted from heat-treated steel with a hot galvanized finish, ensuring exceptional durability and performance. These machine-threaded eye bolts come with hex nuts for secure assembly, featuring a 5 to 1 safety factor in load capacity. Designed for direct tension applications, these eye bolts are ideal for cable assemblies, offering versatility and reliability. Customize with special shank and thread lengths to suit your specific needs.

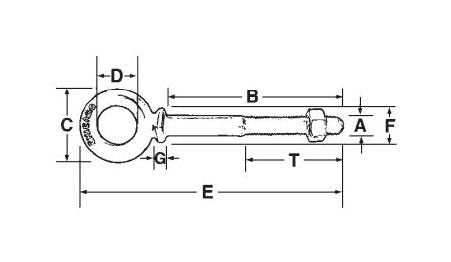

Product Specifications

Specifications Diameter A Shank Length B
3/8" x 2-1/2"
Specifications Inside Eye D
3/4"
Specifications Outside Eye C
1-1/2"
Specifications Outside Shoulder F
11/16"
Specifications Overall Length E
4-1/4"
Specifications Thickness At Shoulder G
1/8"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
1200
Specifications Wt Per 100 Pcs Lbs
21
CAGE
0T9L4
NAICS
332722
PSC
5306
