Chicago Drop Forged Machine Thread Eye Bolts - Heat Treated Steel

Name: Chicago Drop Forged Machine Thread Eye Bolts - Heat Treated Steel
Brand: Lexco Cable Manufacturing
SKU: WIR-290ba9
Price: 559.99 USD
Availability: OutOfStock

SKU:WIR-290ba9

Chicago Drop Forged Machine Thread Eye Bolts - Heat Treated Steel for secure and reliable lifting applications.

$559.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

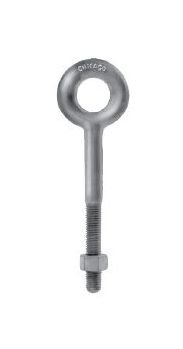

The Chicago Drop Forged Machine Thread Eye Bolts are expertly crafted from heat-treated steel with a hot galvanized finish, ensuring superior strength and durability. These eye bolts feature machine threading with hex nuts for secure assembly. Safety is paramount with a 5 to 1 load factor, guaranteeing reliability under tension. Designed for direct tension applications, any deviations from recommended usage may compromise load limits. Customize with special shank and thread lengths. Made in the USA by Chicago Hardware & Fixture Company.

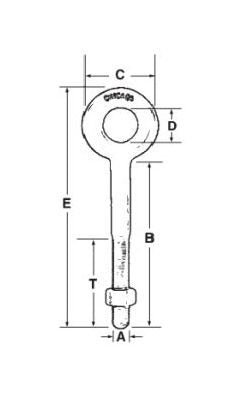

Product Specifications

Specifications Diameter A Shank Length B

5/8" x 24"

Specifications Inside Eye D

1-1/4"

Specifications Outside Eye C

2-5/16"

Specifications Overall Length E

26-5/16"

Specifications Thread Length T

6" "

Specifications Wll Lbs

3500

Specifications Wt Per 100 Pcs Lbs

246

CAGE

0T9L4

NAICS

332722

PSC

5306
