Chicago Drop Forged Machine Threaded Eye Bolt 1/2" x 3-1/4"

Name: Chicago Drop Forged Machine Threaded Eye Bolt 1/2" x 3-1/4"
Brand: Lexco Cable Manufacturing
SKU: WIR-aadac7
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-aadac7

Chicago Drop Forged Machine Threaded Eye Bolt - Heavy-duty, USA-made wire rope hardware with 2200 lbs WLL

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

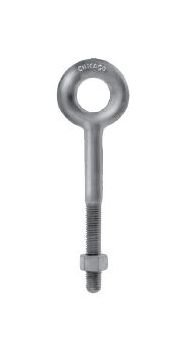

The Chicago Drop Forged Machine Threaded Eye Bolt is a premium wire rope hardware designed to meet the demands of heavy-duty lifting applications. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts undergo drop forging and heat treatment for exceptional strength and durability. With a hot galvanized finish, these machine threaded eye bolts are corrosion-resistant and suitable for harsh environments. Engineered with a 5 to 1 safety factor, they offer a Working Load Limit (WLL) of 2200 lbs. Ensure secure cable attachment with the open eye end or threaded end stud. Special shank and thread lengths are available for custom applications.

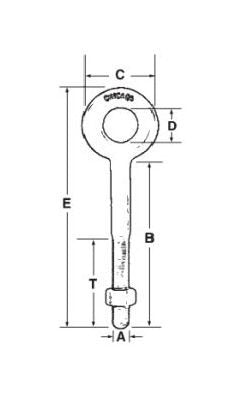

Product Specifications

Specifications Diameter A Shank Length B

1/2" x 3-1/4"

Specifications Inside Eye D

Specifications Outside Eye C

Specifications Overall Length E

5-1/4"

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

2200

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306
