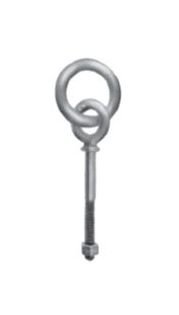

Chicago Drop Forged Ring Bolts - Machine Thread
Chicago Drop Forged Ring Bolts - Machine Thread
SKU:WIR-4e5206
Chicago Drop Forged Ring Bolts - Made in USA, galvanized steel, secure cable attachments, not for lifting applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Machine Thread
$39.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Machine Thread
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your wire rope hardware with Chicago Hardware & Fixture Company's Drop Forged Ring Bolts. Made in the USA, these galvanized steel ring bolts boast precise dimensions and robust construction for reliable performance. Ideal for cable assemblies, these shoulder bolts ensure secure connections without compromising safety. Note: Not for lifting applications.

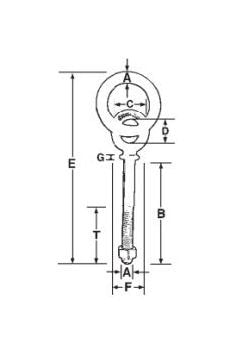

Product Specifications
Specifications Diameter A Shank Length B
1/4" x 4"
Specifications Id Eye Of Bolt D
1/2"
Specifications Id Eye Of Ring
1-3/4"
Specifications Od Eye Of Bolt C
1"
Specifications Outside Shoulder F
7/16"
Specifications Overall Length E
6-1/4"
Specifications Thickness At Shoulder G
5/64"
Specifications Thread Length T
2" "
Specifications Wll Lbs
250
Specifications Wt Per 100 Pcs Lbs
19
CAGE
0T9L4
NAICS
332722
PSC
5306
