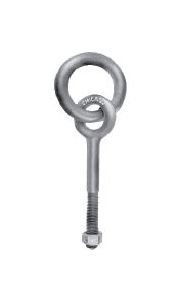

Chicago Drop Forged Ring Bolts - Machine Thread
Chicago Drop Forged Ring Bolts - Machine Thread
SKU:WIR-b105bd
Premium USA-made Chicago Drop Forged Ring Bolts for secure cable assembly attachment without lift applications.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Machine Thread
$389.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Machine Thread
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Drop Forged Ring Bolts - Machine Thread are meticulously engineered for superior durability and reliability. Made in the USA by Chicago Hardware & Fixture Company, these bolts feature drop forged steel construction and a hot galvanized finish. Designed for secure cable assembly attachment, the ring dimensions ensure a strong connection. While these bolts are not intended for lifting applications, they offer exceptional performance in various fastening scenarios, providing unmatched quality and peace of mind.

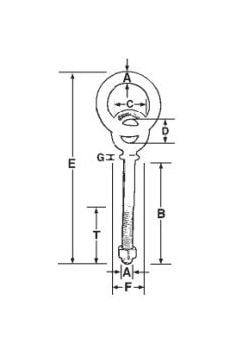

Product Specifications
Specifications Diameter A Shank Length B
1/2" x 8"
Specifications Id Eye Of Bolt D
1"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
2"
Specifications Overall Length E
13"
Specifications Thread Length T
4" "
Specifications Wll Lbs
1100
Specifications Wt Per 100 Pcs Lbs
135.5
CAGE
0T9L4
NAICS
332722
PSC
5306
